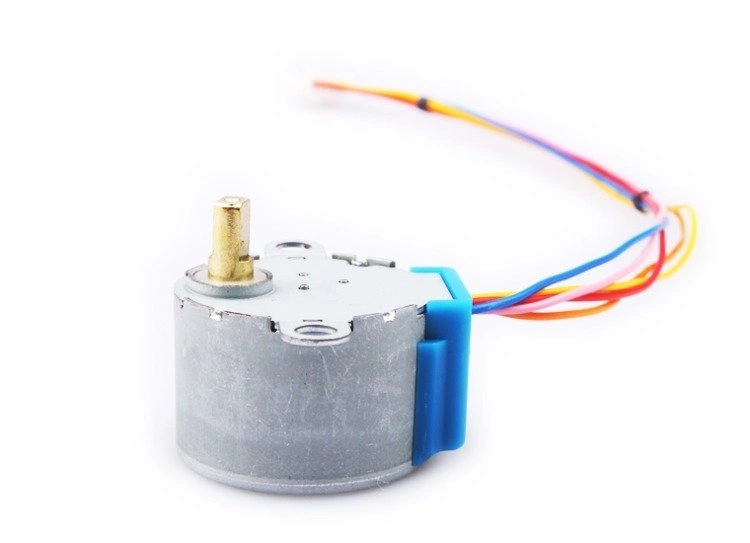

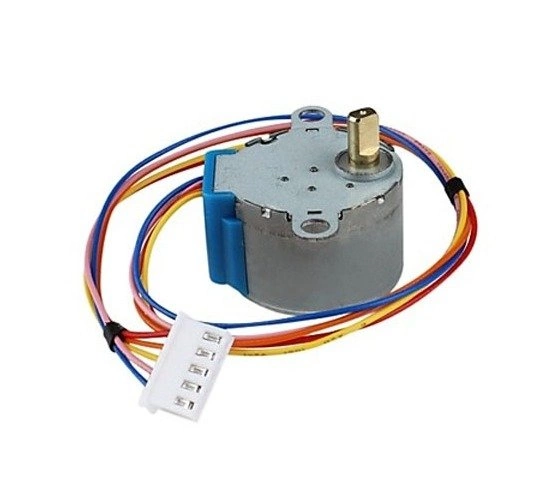

28BYJ-48 stepper motor with gearbox - 5V 0.3A 0.03Nm - Arduino
Product code: 6290
- Low-cost and practical stepper motor - five-wire with integrated 64:1 gearbox. The stepper motor is accurate, so it can be used in projects where high precision is needed, such as a 3D printer or other.
Arduino 28BYJ-48 stepper motor with gearbox - 5V 0.3A 0.03Nm
Extremely popular 28BYJ-48 stepper motor with integrated 64:1 gearbox.
- The mediocre price makes this stepper motor accessible to everyone, and with a controller and hooked up to a micro controller, it gives you plenty of options to control this motor.
- There is also a library for Arduino that simplifies the control of the motor to only specify the speed, direction of rotation, and the ability to perform a certain number of steps.
- Thus, we control the engine without the slightest problem using also dedicated ULN2003 controllers.
- Stepper motor is accurate so you can use it in projects where you need high accuracy / precision such as 3D printer, CNC, laser machine tools or others.
Product features
- Popular stepper motor with gearbox
- Easy connection with the controller - the connector (XH-05) fits the controller
- ULN2003 controller dedicated to this engine
- Speed and holding power sufficient for most applications
- Typical stepper motor applications:
- printers
- cNC equipment
- 3D printers
- laser devices
- manipulators
- works
Technical data
- Holding torque at transmission output: 0.3 kg*cm (0.03 Nm)
- Gear ratio: 64:1
- Rated voltage: 5 V
- Current consumption per coil: 100 mA
- Coil resistance: 50 Ω
- Leads: five wires
- Shaft diameter: 5 mm with bevels
- Weight: 35 g
- Distance between mounting holes: 35 mm
- Dimensions: ϕ28 x 19 mm (without shaft)
Connection presentation and diagrams
