AC 230V power regulator module 2000W - maximum 2kW
AC 230V power regulator module 2000W - maximum 2kW
AC 230V power regulator module 2000W - maximum 2kW
AC 230V power regulator module 2000W - maximum 2kW
AC 230V power regulator module 2000W - maximum 2kW
AC 230V power regulator module 2000W - maximum 2kW
AC 230V power regulator module 2000W - maximum 2kW
AC 230V power regulator module 2000W - maximum 2kW
AC 230V power regulator module 2000W - maximum 2kW
AC 230V power regulator module 2000W - maximum 2kW
AC 230V power regulator module 2000W - maximum 2kW
AC 230V power regulator module 2000W - maximum 2kW
AC 230V power regulator module 2000W - maximum 2kW
AC 230V power regulator module 2000W - maximum 2kW

AC 230V power regulator module 2000W - maximum 2kW

Product code: 9156
+ Add to compareAdd to shopping list
  • Use in: light intensity control (dimmer), smooth motor speed control in power tools, fans, etc., charging current control in battery chargers, temperature control in heaters, heaters and much more...
Size
uniwersalny
$1.80
incl. VAT / pcs.
Lowest price in 30 days before discount: / pcs.
Regular price: / pcs.
Order more, pay less!
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Deferred Payments. Buy now, pay later, if you don't return it
Buy now, pay later - 4 steps
When choosing a payment method, select PayPo.PayPo - buy now, pay later
PayPo will pay your bill in the store.
On the PayPo website, verify your information and enter your social security number.
After receiving your purchase, you decide what suits you and what doesn't. You can return part or all of your order - then the amount payable to PayPo will also be reduced.
Within 30 days of purchase, you pay PayPo for your purchases at no additional cost. If you wish, you spread your payment over installments.

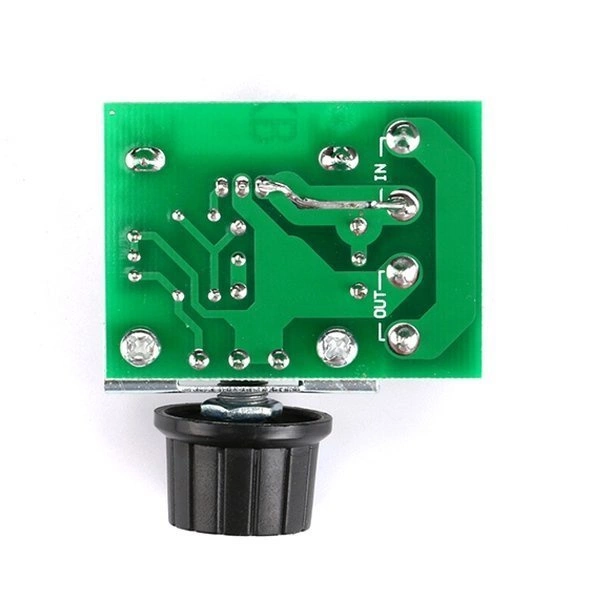

AC POWER controller module up to 2000W - 2kW maximum

ściemniacz

SCR voltage and power regulator controls the operating voltage from 10V to 230V AC. The power controller has a built-in potentiometer for infinite output voltage adjustment and a heat sink for better heat dissipation from the triac.

The regulator can be used in many devices powered by AC voltage from the power grid.

  • light intensity control (dimmer)
  • infinitely variable speed control of motors in power tools, fans, etc.
  • charge current regulation in battery chargers
  • temperature control: heaters , heaters, etc.

Product features

  • Infinitely adjustable motor speed, heater temperature and speed in power tools.
  • Terminal block connectors for screwing wires - aRK twist-on connectors
  • The system built on thyristor.
  • The controller uses an innovative bi-directional high-power SCR to regulate current up to 25A.

Technical data

  • max. output power : 2000 watts
  • max. output current: 8A
  • working voltage : 230 V
  • regulation range : 10 V - 230 V
  • working temperature: -20°C to 40°C
  • triac equipped with a heat sink

Regulator mocy

Connection method:

  • to the input connect the wires with mains voltage 230 V.
  • to the input terminal labeled "L" connect the wire with the phase,
  • to the terminal "N" connect the neutral wire.
  • connect the output terminals freely, provided that the receiver does not require a corresponding connection.

Important note on safety

  • There is a high life-threatening voltage on the executive module side of the controller board!
  • Do not, under any circumstances, perform tests on the device without proper protection, you risk electric shock.
  • There is high potential on almost every element on the module side. Special care should be taken

Included

  • AC POWER regulator module up to 2000W - maximum 2kW - 1 pc
