Product code: 6140
+ Add to compareAdd to shopping list
  • Universal RF transmitter receiver module in the 433MHz band for data transmission. FS100A radio transmitter + 433 MHz receiver module
Size
uniwersalny
$1.66
incl. VAT / pcs.
Lowest price in 30 days before discount: / pcs.
Regular price: / pcs.
Order more, pay less!
14 days for easy returns
Find out in which store you can check the product and buy it right away
Arduino 433MHz RF radio module - Arduino transmitter and receiver
Arduino 433MHz RF radio module - Arduino transmitter and receiver
uniwersalny
Safe shopping
Deferred Payments. Buy now, pay later, if you don't return it
Buy now, pay later - 4 steps
When choosing a payment method, select PayPo.PayPo - buy now, pay later
PayPo will pay your bill in the store.
On the PayPo website, verify your information and enter your social security number.
After receiving your purchase, you decide what suits you and what doesn't. You can return part or all of your order - then the amount payable to PayPo will also be reduced.
Within 30 days of purchase, you pay PayPo for your purchases at no additional cost. If you wish, you spread your payment over installments.

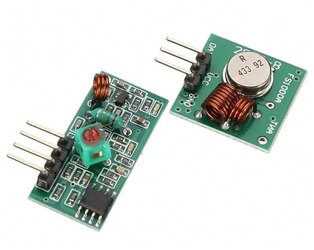

Arduino RF 433MHz radio module - FS1000A transmitter and receiver

modul radiowy rf 433mhz

Universal RF receiver and transmitter module in the 433MHz band for data transmission.

Radio module transmitter FS100A + receiver 433 MHz XY-MK

Technical data

  • Transmitter: FS1000A
    • supply voltage 3.5V - 12V
    • current consumption ~ 40mA(12V) ~ 9mA(3.5V)
    • Operating frequency: 433 MHz
    • range up to 150m
    • aM ASK/OOK modulation
    • Transmission speed: up to 9.6 Kb
    • power 10mW
    • dimensions 19x19x7mm
    • Interface: single wire
    • Connector for soldering in an external antenna
  • Receiver: XY-MK
    • 5V supply voltage
    • current consumption ~ 5.5mA
    • sensitivity ~ 100dB
    • Interface: single-wire TTL
    • dimensions 30x14x9mm
    • Connector for soldering in an external antenna

Example connection

moduł radiowy RF 433MHz Arduino

Included

  • 433MHz transmitter - 1 pc
  • 433MHz receiver - 1 pc.

Video presentation

Write your opinion
Your score:
5/5
Add a picture:
Brand
ABC-RC
Entity responsible for this product in the EU
JH Global Trading (HK) Co., LimitedMore
ProducerJH Global Trading (HK) Co., LimitedAddress: Room G, Floor 10, Block A, Duhui Electronic Building, Huaqiang Road 10Postal Code: CN 518031City: ShenzhenCountry: ChinaPhone number: 86 075582557429E-mail: info@jh-electronica.com
Responsible entityABC-RC Firma LedaAddress: Judy Tadeusza 9Postal Code: 34-122City: NidekCountry: PolandPhone number: 333-003-080E-mail: pomoc@abc-rc.pl
Symbol
6140
Producer code
5904384725403
Status
New
Manufacturer
AF
Model
6140
Manufacturer code
6140
Rodzaj
inny
