CAN-BUS module on MCP2515 - Arduino module for CAN bus communication

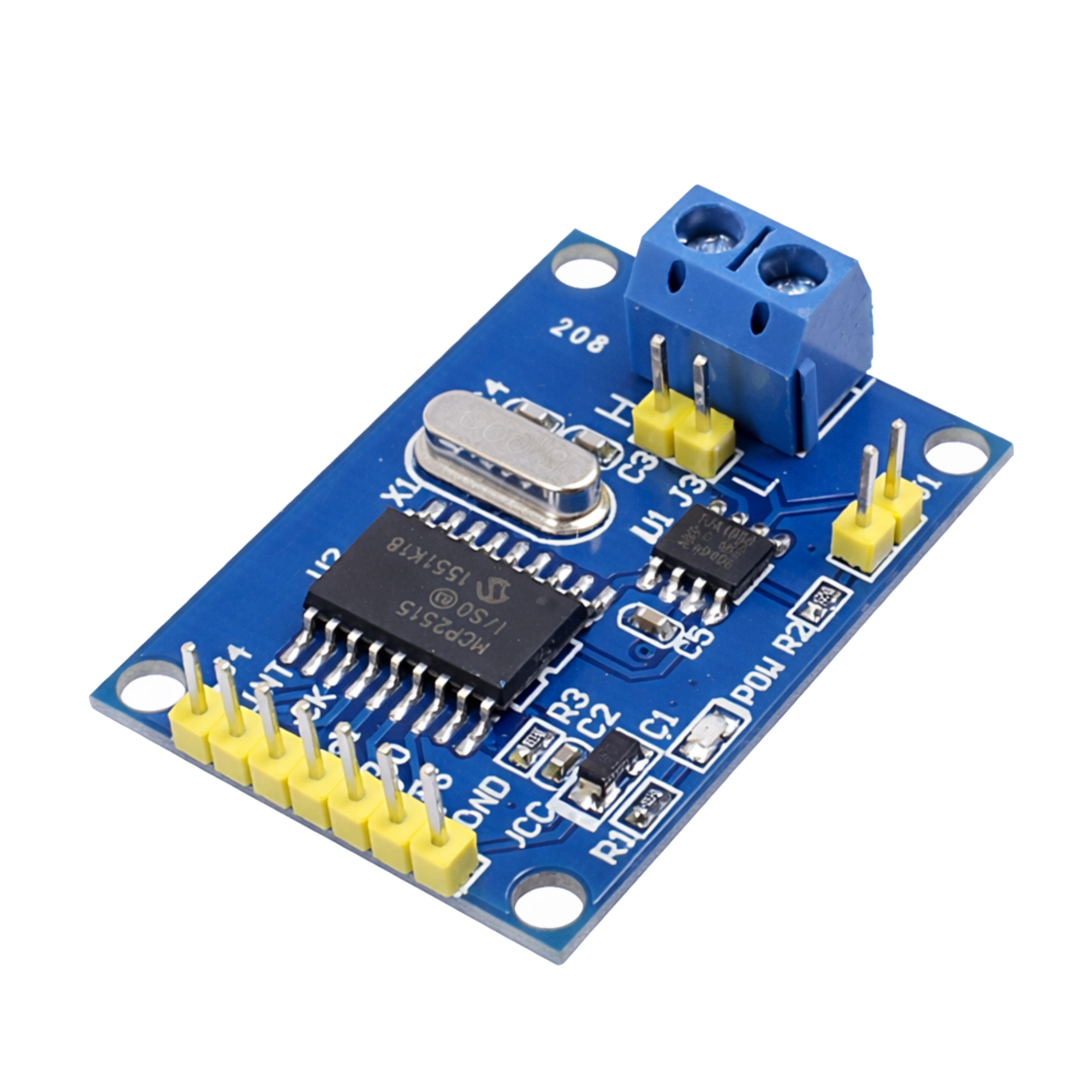

Moduł CAN-BUS na MCP2515

A module that allows the device to communicate via the CAN bus, which is used in industry and automotive applications.

With this module, you can communicate with devices using this bus. So you can read the signal from the sensors and check their correct operation. By connecting to the vehicle, you can read error codes and more.

Technical parameters of the CAN-BUS MCP2515

  • Interface: CAN v2.0B 1 Mbps
  • CAN bus controller: MCP2515
  • CAN transceiver: TJA1050
  • Quartz used: 8MHz
  • Communication interface with the microcontroller: SPI
  • Supply voltage: 5V
  • CAN bus connection to ARK connector (J2) or goldpin (J3)
  • Detachable 120Ω terminal resistance (J1)
  • Raster goldpin connectors 2.54mm
  • Power LED
  • Dimensions: 40mm x 29mm
  • The module is compatible with shields for Arduino based on the MCP2515 chip, was tested with www libraries.seeedstudio.com/wiki/CAN-BUS_Shield

NOTE! On the board is mounted 8MHz quartz, some libraries, examples available on the Internet may be written for other values of the quartz, what to pay attention to and if necessary replace the quartz or change the code.

The way to plug the module into the Arduino

  • GND - GND
  • INT - D2
  • SCK - D13
  • SI - D11
  • SO - D12
  • CS - D10
  • VCC - 5V
