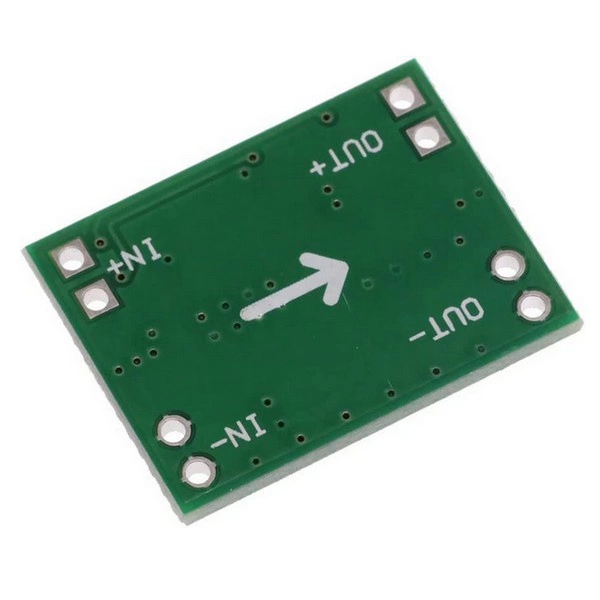

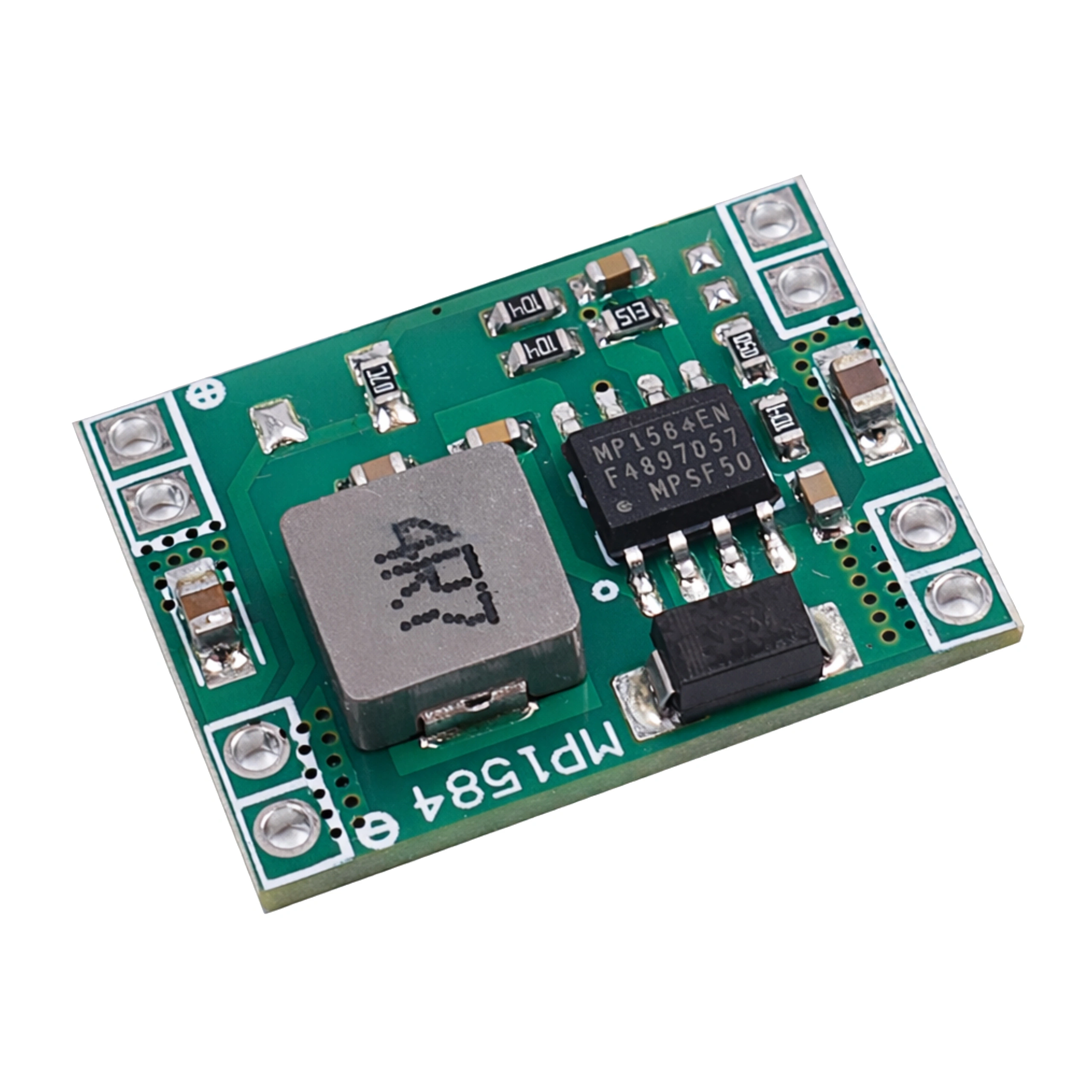

DC-DC Converter MP1584EN - max 3A - 5V- micro 2 grams - Step-Down - for FPV
Product code: 19861
Series: Moduły Przetwornic
- Inverter that changes voltages from 4.5V to 28V - to a voltage of 5V. The circuit works only as a voltage reducer.
DC-DC converter MP1584EN - max 3A - 5V
Inverter that changes voltages from 4.5V to 28V - to a voltage of 5V. The circuit works only as a voltage reducer.
This device allows you to safely stable power FPV electronics (cameras, etc.) on a stabilized constant voltage (e.g. 12V), in case the input supply is greater than the output voltage + 1.5V
Technical data:
- Input voltage : 4.5-28V
- Output voltage: 5V
- Output current: max 2A constant (for 12V output) or 1.5-2A (for 5V output), Max 3A (with heatsink), heatsink must be installed when power is more than 15W. (The heat sink is not in this unit)
- Efficiency: Max 96%
- Frequency: 150kHz
- Minimum voltage difference: 1.5V (voltage is lower than input voltage)
- Operating temperature: -40 ? up to +85 ? (power in 10W)
- Output ripple: <30mv span="">
- Short circuit protection: No
- Size: 22x17x4 mm
- Weight: 2g
- Datasheet - technical data
Notes:
- Incorrect connection of power supply polarity causes damage to the inverter - warranty will not be recognized
- This device is for experienced do-it-yourselfers, basic electronics knowledge and soldering skills are required. The company is not responsible for damages resulting from lack of soldering skills or poorly made electrical installations.
- Check the output voltage and adjust with the proper potentiometer and only then connect the receiving device
