LED lighting 5050 WS2812B - 4 Bits Square - RGB LED module
Product code: 18199
- LED module consisting of 4 RGB LEDs WS2812B with integrated driver, which is individually addressable. Operation of the module is via a single cable.

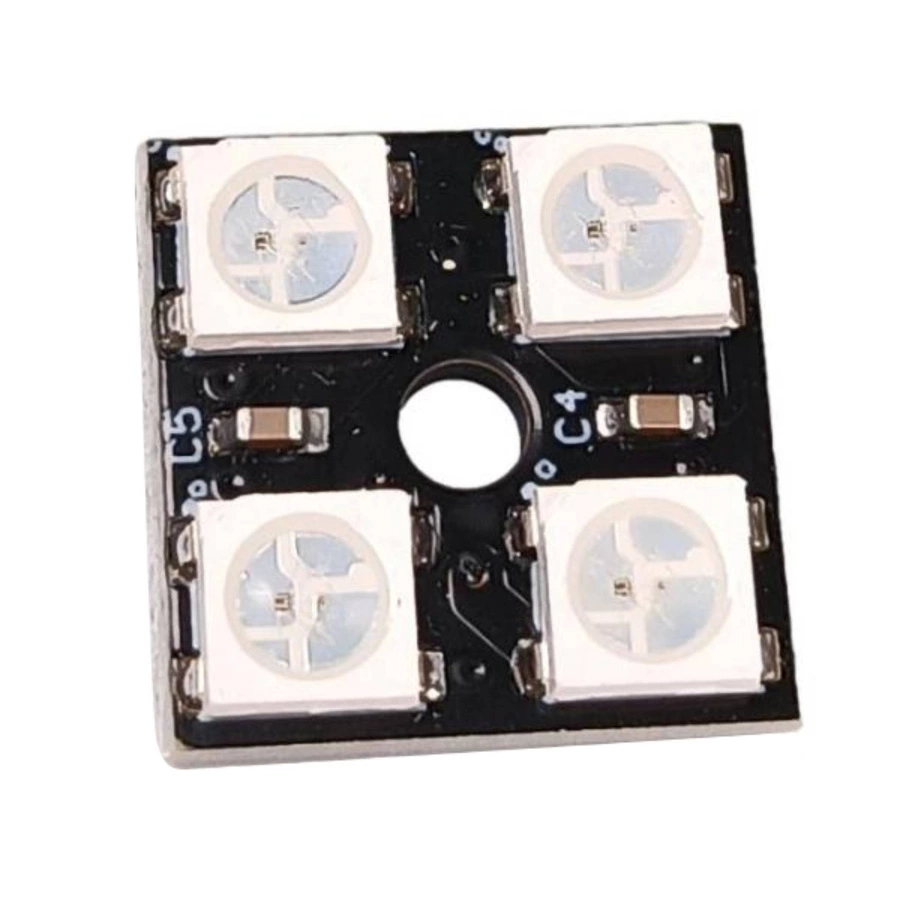

LED lighting 5050 WS2812B - 4 Bits Square - RGB LED module
The LED lighting module consists of 4 RGB WS2812B LEDs with an integrated driver so that each LED can have an individually set color.
- The module is operated via a single digital cable.
- The diode is located on a circle and draws 18mA.
- The ring is powered by 5V.
Connecting
- GND - ground of the module
- 5 V - supply voltage, 18 mA current per diode
- Data IN - digital control signal from the microcontroller
- Data OUT - output for connecting the next ring
Technical data
- Supply voltage: 5V
- DC power supply: 18mA
- LEDs used: RGB LED WS2812B
- Number of LEDs: 4 pcs.
- Module dimensions: 15x15 mm
- Diode dimensions: 5x5 mm
Useful links
Included
- LED lighting 5050 WS2812B - 4 Bits Square - RGB LED module - 1pc.
