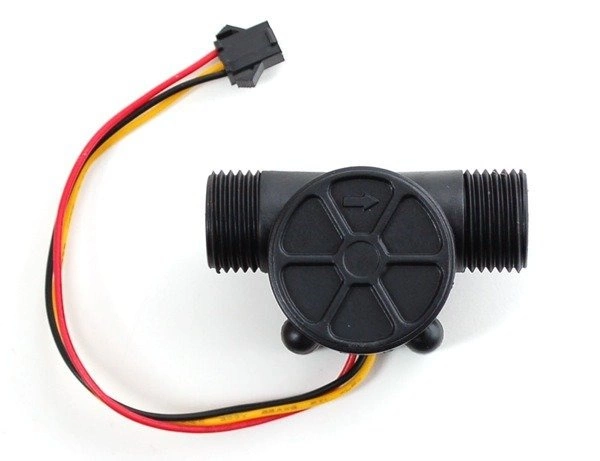

Liquid flow sensor, water 1-30l/min - 1/2' - flow meter YF-S201
Product code: 7712
- Liquid flow sensor made of high-grade PPS plastic that is chemically and mechanically resistant is used to control external devices. Responds to even a small flow by generating a high-resolution voltage signal to the controller.
Liquid flow meter 1-30L per minute
Description
Liquid flow sensor made of high-grade PPS plastic that is chemically and mechanically resistant is used to control external devices. Responds to even a small flow by generating a high-resolution voltage signal to the controller.
Example of flowmeter design here.
Product features
- Very easy installation
- Wide range of usability
- Simple, low-failure design
- Pulse output
Technical data
- power supply 3,5 - 24 VDC
- working pressure maximum 17.5 bar
- maximum operating current 10mA
- medium temperature -20 to +90 C
- connections 1/2 inch (external diameter of the thread 20mm)
- flow rate 1-30 liters/minute
- resolution F=(7.8*Q) ±10% Q=L/MIN
- number of pulses per liter of liquid : 468 +- 10%
For a flow rate of 1 liter/minute, for example, the sensor will generate a rectangular signal with a filling of about 50% and a frequency of 7.8 Hz (+-10%).
Similarly, for a flow of 10 liters/minute, it will be 78 Hz (+-10%)
Arduino wiring diagram
Included
- Liquid flow sensor 1-30l/min - 1pc.
