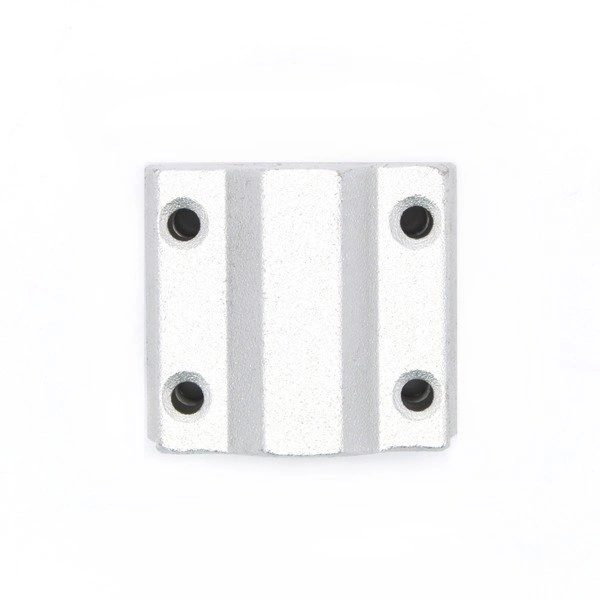

LM10UU linear bearing in SC10UU 10mm housing - RepRap 3D CNC - SCS10UU

Linear bearing LM10UU in housing SC10UU with bore diameter 10mm. Closed linear bearings are widely used in linear motion technology. The middle part of the bearing is made of plastic and the housing is made of anodized aluminum alloys.

Linear bearings in the housing make installation easier and more convenient than a standard linear bearing. Even under heavy load, linear bearings maintain excellent performance.

They are great for use in contaminated industrial environments because they have a rubber seal, which prevents all sorts of filings or dirt from entering the bearing.

Linear ball bearings are among the most basic, as well as essential components of linear motion technology. The design itself as well as their great strength and longevity is undoubtedly a unique achievement of technology.

The professional design of linear bearings in a housing makes it possible to use them in linear motion technology for construction:

• 3D printers,
• cNC milling machines,
• cNC burners,
• cNC router,
• robots,
• manipulators,
• etc.

Product features

• The bearings have a rubber seal on both sides, so that all kinds of dirt does not accumulate on the bearing paths.
• Bearing with platform allows for convenient installation.
• Achieve very high precision and speed of movement.
• There are mounting holes on the top and bottom for easy adjustment and calibration of the bearing in the system, for M4 screws.
• The linear bearing inserts used in the LM standard are interchangeable.

Technical data

• maximum travel speed 5m/s
• working temperature range -20°C to 80°C
• coefficient of friction 0.001-0.005
• model: SC10UU
• Number of rows: 4

Included

• Linear bearing SC10UU 8mm - 1pc.
