M10 lock nut with flange - 3-hole
Product code: 15722
- M10 lock nut with flange and 3 holes is used for various types of fasteners. Secures the attached component. The inner hole is tapped and suitable for trapezoidal screws and shafts on M10 threads.

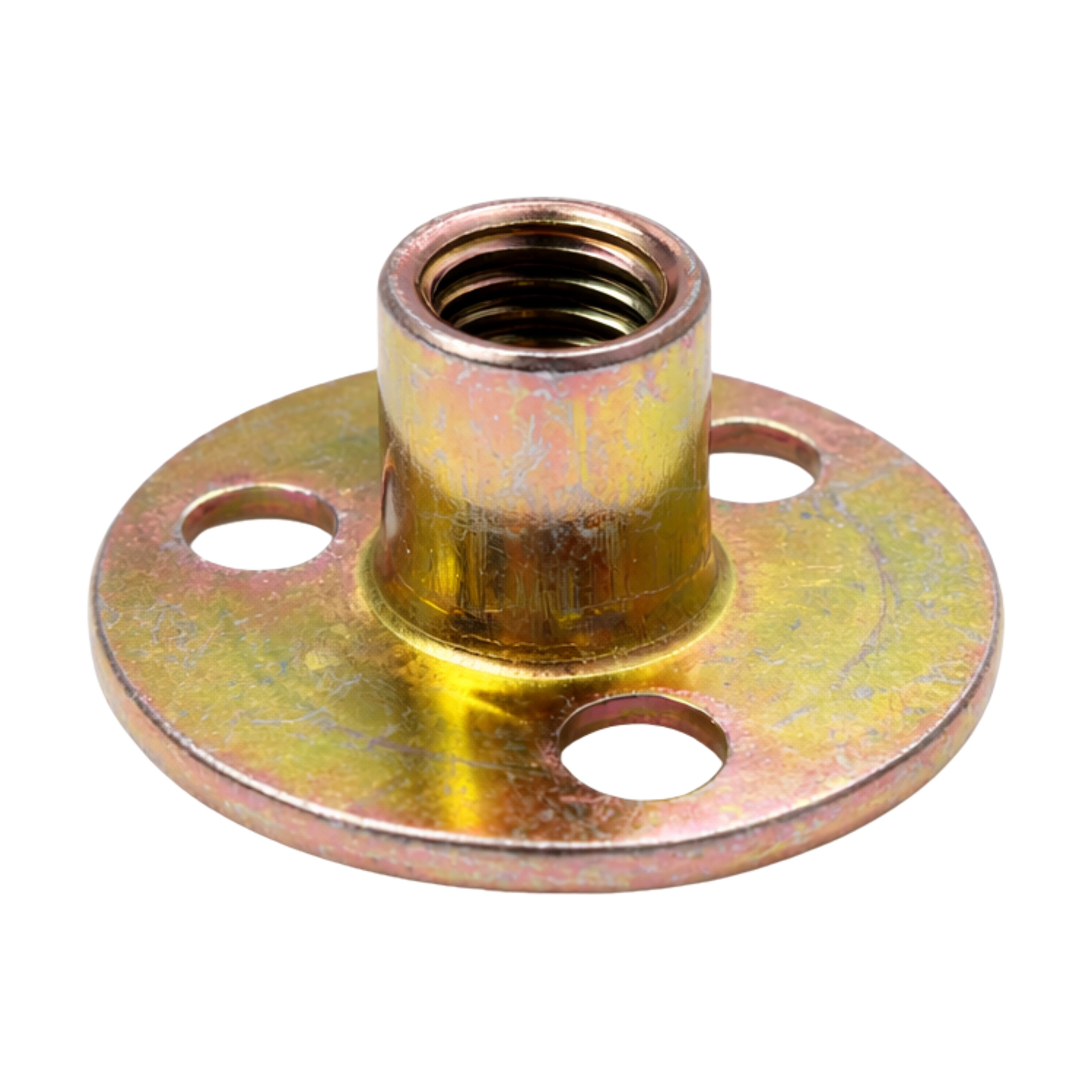

M10 lock nut with flange - 3-hole
M10 lock nut with flange and 3 holes is used for various types of fasteners. Secures the attached component. The inner hole is tapped and suitable for screws with M10 metric threads.
Technical data
- Diameter - M10*1,5
- Metric threads: triangular
- Flange hole diameter: 8 mm
- Outer diameter of threaded sleeve: 13 mm
- Length of thread sleeve: 14 mm
- Total height of the nut: 16.5 mm
- Flange diameter: 36 mm
- Flange thickness: 2.5 mm
- Diameter of three mounting holes: 5 mm
- Weight: ∼30 g
Included
- M10 lock nut with flange - 3-hole - 1 piece
