Mini USB socket for contact board KIT - Mini-USB socket - Mini DIP
Mini USB socket for contact board KIT - Mini-USB socket - Mini DIP
Mini USB socket for contact board KIT - Mini-USB socket - Mini DIP

Mini USB socket for contact board KIT - Mini-USB socket - Mini DIP

  • Module equipped with MiniUSB socket. After soldering the pin strip, we have the option of connecting to a contact board or wires with goldpin sockets.
SizePrice / pcs.DiscountAvailability and ShippingBuy with pointsQuantity
uniwersalny
$0.40 incl. VAT
List price:
Discount
5pcs.$0.38(-5%)
10pcs.$0.37(-8%)
20pcs.$0.36(-10%)
Product available
Product availableShipment tomorrow (351 pcs. in stock)
Buy with points
Sum of selected products:
(Discount %)
0
incl. VAT / 1pcs.
32 / 1pcs.
14 days for easy returns
Find out in which store you can check the product and buy it right away
Mini USB socket for contact board KIT - Mini-USB socket - Mini DIP
Mini USB socket for contact board KIT - Mini-USB socket - Mini DIP
Safe shopping
Deferred Payments. Buy now, pay in 30 days, if you don't return it
Buy now, pay later - 4 steps
When choosing a payment method, select PayPo.PayPo - buy now, pay later
PayPo will pay your bill in the store.
On the PayPo website, verify your information and enter your social security number.
After receiving your purchase, you decide what suits you and what doesn't. You can return part or all of your order - then the amount payable to PayPo will also be reduced.
Within 30 days of purchase, you pay PayPo for your purchases at no additional cost. If you wish, you spread your payment over installments.
After purchase you will receive pts.

Mini USB socket for contact board

gniazdo mini usb

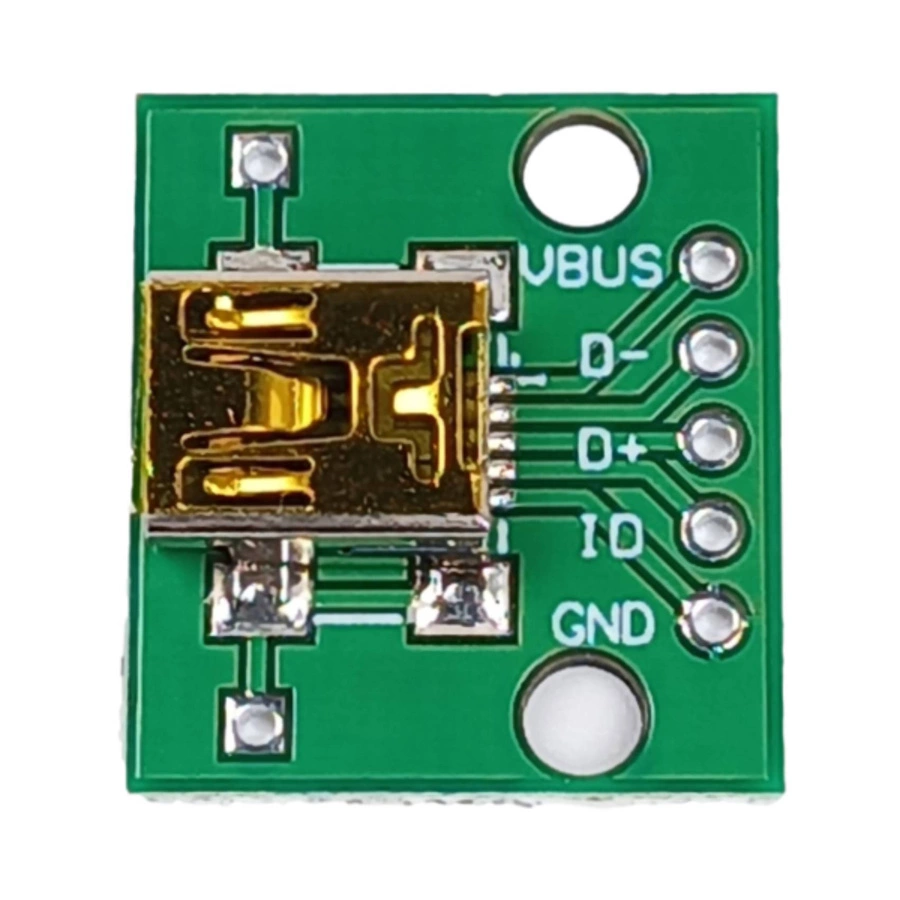

Module equipped with MiniUSB socket. After soldering the pin strip, we have the option of connecting to a contact board or wires with goldpin sockets.

Technical data

  • Module equipped with a mini USB socket
  • It is necessary to buy a 1x5pin pin strip (not included)
  • Outputs:
    • VBUS
    • D-
    • D+
    • ID
    • GND
  • Possibility to solder a pin strip (once soldered, it can be connected to a contact board or wires with goldpin sockets) or wires
  • Lead-in raster: 2.54mm

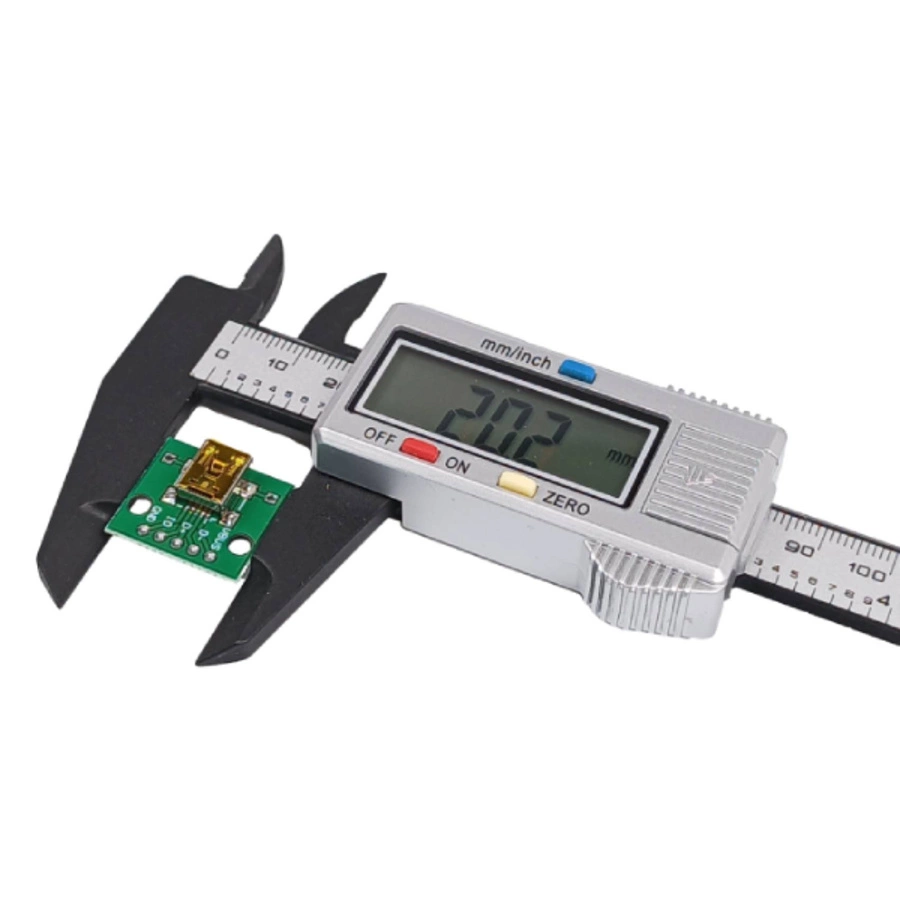

  • Dimensions: 18x20mm

Included

  • Mini USB socket for contact board KIT - Mini-USB socket - Mini DIP - 1pc.

No pin strip included

Brand
Symbol
10048
Producer code
5904384718320
Brand
Inna
Status
New
Socket type
Nest
Type of socket
other
Manufacturer code
10048
Model
Mini USB
Connectors
mini-USB type B socket
