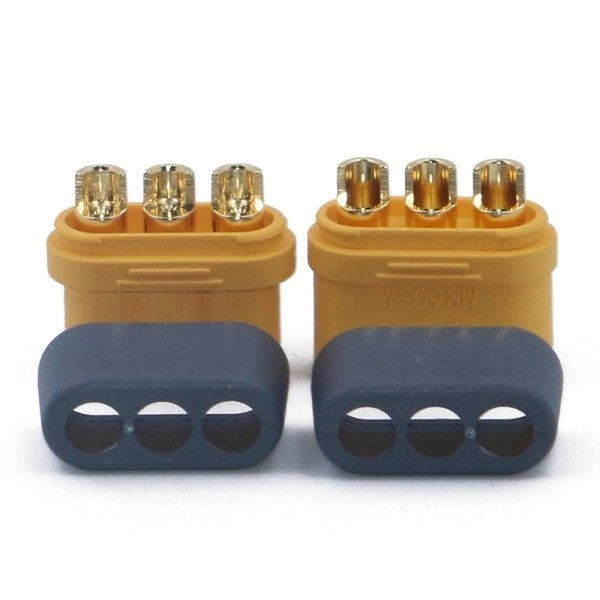

MR60-M connector - Amass connector - plug + socket - connector with covers for ESC-motor connections
Product code: 15757
- The MR60-M from Amass with plug and socket with covers is the highest quality connection connector. MR60 current connector is a connector with covers for ESC and Motor connections. MR60 shielded connector ideal for connecting engine with ESC etc.
MR60-M connector - Amass connector - plug + socket - connector with covers for ESC-motor connections
MR60-M from Amass complete with plug and socket with covers is the highest quality connection connector. MR60 current connector is a connector with covers for ESC and Motor connections. MR60 plugs are high current connectors with shields ideal for connecting, for example, a motor with an ESC, etc.
Technical data
- Protective sleeve
- Supporting foot welds, more stable
- Body and plating surface material: Brass and gold plated
- Insulating material: PA66
- Original internal resistance: 0.5Mohm
- Maximum current: 30A (within 30 minutes)
- Pulse current: 60A
- Rated voltage: 500V DC
- Recommended cable specification: 12AWG
- Weight: 8.5 g / piece
- Degree of insulation: UL94V-0
Included
- MR60-M connector - Amass connector - plug + socket - 1 pair
A guide to the plugs and connectors used in RC modeling
Want to know more about the plugs used in modeling - click here -> A guide to the plugs and connectors used in RC modeling
