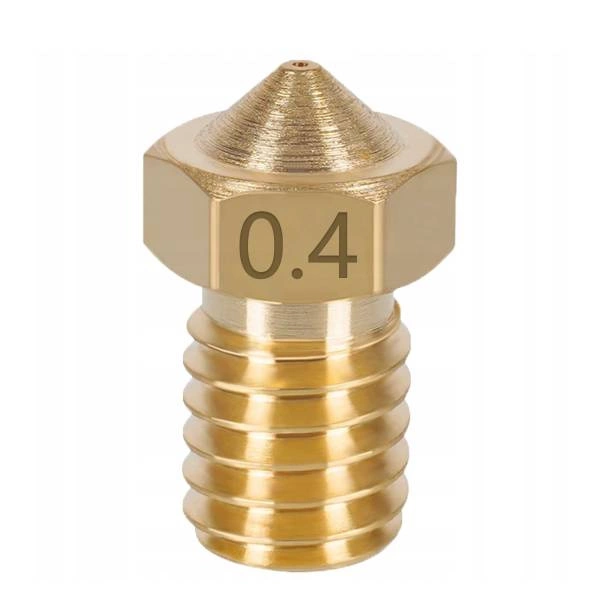

Nozzle 0.4mm M6 - Filament 1.75mm - H12.5mm - small cone - RepRap E3D V5 V6
- E3D nozzle with 0.4 mm hole is designed to work with 1.75 mm filament. The nozzle fits most available heads on 3D printers that use the E3D V6 system with M6 threads. Brass nozzle conducts temperature very well.
0.4mm M6 nozzle for 1.75mm filament - small cone - RepRap E3D V5 V6
Nozzle with small cone and 0.4 mm hole is designed to work with 1.75 mm filament. The nozzle fits most available heads on 3D printers that use the E3D V6 system with M6 threads.
Brass nozzle conducts temperature very well that is why it is extremely popular in 3D printing.
The nozzle is the final and particularly important point in the path of the processed filament. It is important to clean the nozzle frequently especially if you often process filaments of different types and colors.
A clogged or dirty nozzle opening can be cleaned:
- thin wire, needle
- with a special drill for cleaning nozzles
Product features
- The internal geometry of the V6 nozzles is optimized to reduce backpressure, ensuring smooth, easy flow of the filament while increasing retraction efficiency.
- The nozzle tip has a flat surface that flattens the layers, is machined individually for each nozzle size.
- Small nozzle tip ensures high precision.
- Brass nozzle has excellent thermal conductivity.
- With a brass nozzle, we print faster than with a steel nozzle.
- Low price and easy availability.
Technical data
- Nozzle bore diameter - 0.4mm
- M6 threads
- For filament: 1.75mm RepRap E3D v5 v6
- Material: brass
Included
- Nozzle 0.4mm M6 - Filament 1.75mm - RepRap E3D V5 V6 - 1 piece.
