Power regulator module AC 230V 2000W - potentiometer on 20cm cable - maximum 2kW

Power regulator module AC 230V 2000W - potentiometer on 20cm cable - maximum 2kW

Use in: light intensity control (dimmer), smooth motor speed control in power tools, fans, etc., charging current control in battery chargers, temperature control in heaters, heaters and much more...

uniwersalny

$1.89 incl. VAT

List price:

Discount

5pcs.$1.80(-5%)

10pcs.$1.74(-8%)

20pcs.$1.70(-10%)

Product availableReady for dispatch tomorrow (277 pcs. in stock)

Buy for points PTS.

Sum of selected products:

(Discount %)

incl. VAT / 1pcs.

/ 1pcs.

14 days for easy returns

Find out in which store you can check the product and buy it right away

Power regulator module AC 230V 2000W - potentiometer on 20cm cable - maximum 2kW

Safe shopping

Deferred Payments. Buy now, pay later, if you don't return it

Buy now, pay later - 4 steps

When choosing a payment method, select PayPo.

PayPo will pay your bill in the store.
On the PayPo website, verify your information and enter your social security number.

After receiving your purchase, you decide what suits you and what doesn't. You can return part or all of your order - then the amount payable to PayPo will also be reduced.

Within 30 days of purchase, you pay PayPo for your purchases at no additional cost. If you wish, you spread your payment over installments.

After paying for this item you will be awarded PTS.

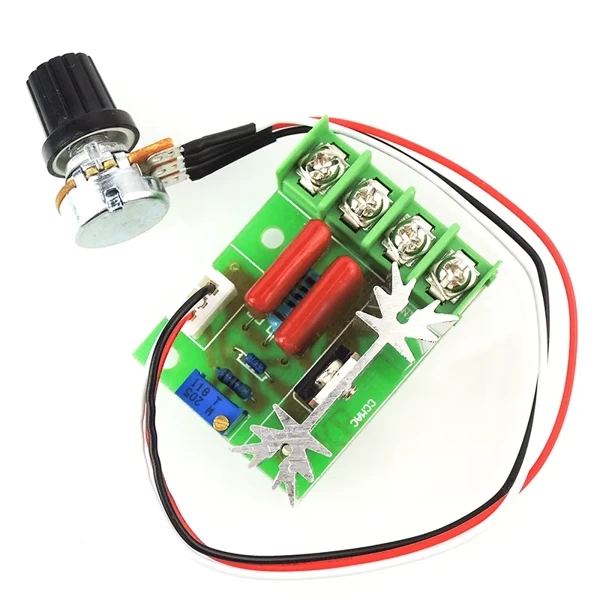

AC POWER controller module up to 2000W - 2kW maximum

SCR voltage and power regulator controls the operating voltage from 10V to 230V AC.

The power controller has a built-in potentiometer for infinite output voltage adjustment and a heat sink for better heat dissipation from the triac.

The regulator can be used in many devices powered by AC voltage from the power grid.

light intensity control (dimmer)
infinitely variable speed control of motors in power tools, fans, etc.
charge current regulation in battery chargers
temperature control: heaters , heaters, etc.
Infinitely adjustable motor speed, heater temperature and speed in power tools.
Terminal block connectors for screwing wires - aRK twist-on connectors
The system built on thyristor.
The controller uses an innovative bi-directional high-power SCR to regulate current up to 25A.

Technical specifications of the 2000W regulator

max. output power : 2000 watts
max. output current: 8A
working voltage : 230 V
regulation range : 10 V - 230 V
working temperature: -20°C to 40°C
triac equipped with a heat sink
max dimensions with heatsink: 39x49x26mm
cable length: 200mm

Connection method:

to the input connect the wires with mains voltage 230 V.
to the input terminal labeled "L" connect the wire with the phase,
connect the neutral wire to the "N" terminal.
connect the output terminals freely, provided that the receiver does not require a corresponding connection.

Important note on safety

There is a high life-threatening voltage on the executive module side of the controller board!
Do not, under any circumstances, perform tests on the device without proper protection, you risk electric shock.
There is high potential on almost every element on the module side. Special care should be taken

Brand

ABC-RC

Symbol

18404

Producer code

5904384737543

Brand

ABC-RC

Model

18404

2kw

Status

New

Manufacturer

Other

Manufacturer code

yakar

Rodzaj

inny
