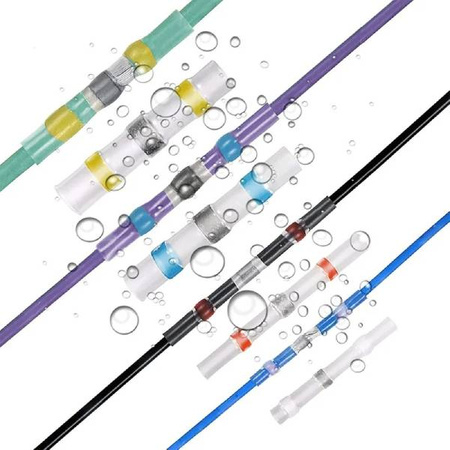

Quick connector with tin 0.25-0.34mm2 - for connecting wires - SST-11
Product code: 11819
- Quick connector 0.25-0.34mm2 heat shrinkable with tin is indispensable when we need to connect wires securely and permanently. In the center of the heat shrink tubing is a ring of tin, which when heated to about 150ºC melts, connecting the wires together.
Quick release with tin 0.25-0.34mm2
Quick release 0.25-0.34mm2 made of heat shrinkable material with tin is irreplaceable when we need to securely and permanently connect or repair wires. In the center of the heat shrink tube is a ring of tin, which when heated to about 150ºC melts, thus connecting the wires. Inside the quick disconnect there are 2 layers of glue to reinforce and protect the wire connection from moisture.
Once the wires are joined together, no additional insulation is needed.
The connector increases the security and durability of the connection, providing quick installation without the use of a press.
Technical data
- cable range: 0.25~0.34mm2 (26-24 AWG)
- tube length: about 26mm
- inside diameter: 1.5mm
- operating temperature: -55°C ~ 125°C
- shrinking and melting temperature of tin: above 150°C
- degree of contraction: 3:1
- insulating material: Polyolefin
Included
- Quick release with tin 0.25-0.34mm2 - for connecting wires - 1pc.
Installation of quick disconnects
