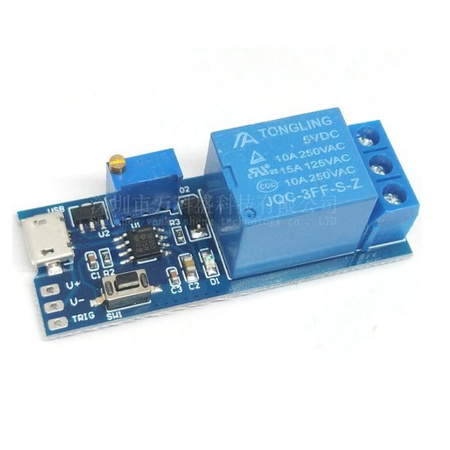

Relay module with timer - 0-19 seconds - 5V - 10A/250V
Product code: 12655
- NE555 adjustable timer relay module. The potentiometer is used to adjust in 0-19 s. The module activates the relay when the trigger is triggered or the button (SW1) is pressed. The module additionally has a convenient MicroUSB power supply.
Relay module with timer - 0-19 seconds
Product Description:
NE555 adjustable timer relay module. The potentiometer is used to adjust from 0 to 19 seconds. The module turns on the relay after triggering the trigger (applying ground to the trigger pin) or pressing the button (SW1), and then turns off the relay after a fixed time of 0-19s (delay), and remains so until triggered again. The module additionally has a convenient to use MicroUSB 5.0 V power supply.
The module has a control relay at its output, which, depending on the operating state, opens or closes its contacts, thus controlling any working circuit, which can be roughly compared to the operation of an ordinary ON/OFF switch.
Relay does not output voltage.
Technical data:
- power supply voltage: 5V
- microUSB power supply: 5.0 V
- adjustment by multi-turn potentiometer
- range: 0 - 19 seconds
- control circuit: NE555
- output: terminal strips ARK
- relay contact load: 10A/250V
- board dimensions: 54 x 20 x 18 mm
- weight: 15 g
