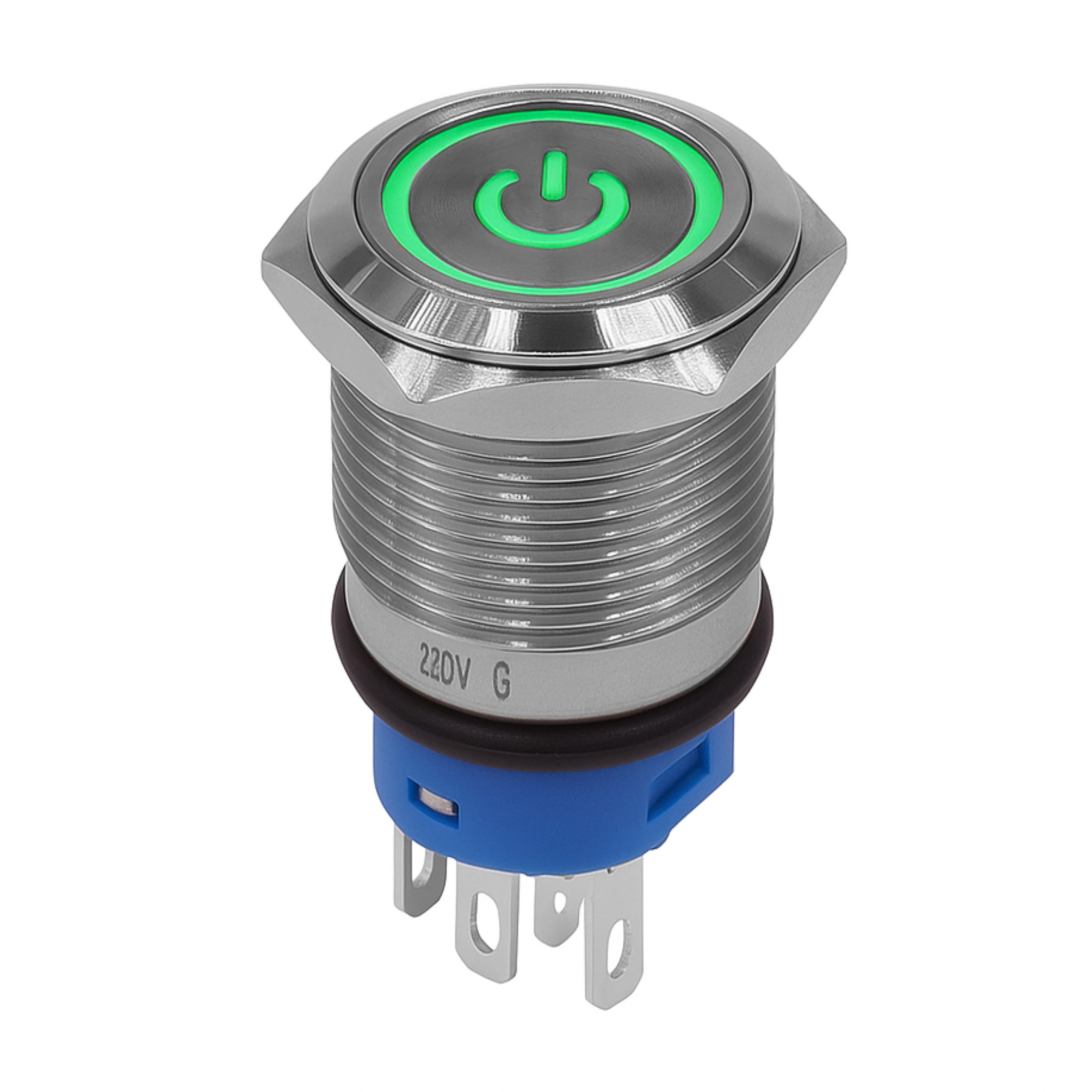

Switch Monostable Button Vandal resistant LED Green 16mm 220V
Product code: 21562
- Vandal-proof LED monostable button is a reliable solution for demanding applications. Green LED backlighting enhances visibility, and the sturdy 16mm metal housing provides resistance to damage. Adapted for 220V installation.
Green button with LED backlight - resilience you can trust
Durable button for industrial and domestic applications
Monostable vandal-resistant switch with a diameter of 16 mm z green LED backlight is the ideal solution for those looking for a durable and aesthetically pleasing control element. Designed to work in harsh environments, great for control panels, automation, vehicles and DIY installations.
Key features:
- Type: Monostable (momentary) button
- Mounting hole diameter: 16 mm
- LED backlighting: Green
- Backlight supply voltage: 220V AC
- Housing material: Stainless steel - resistant to mechanical damage
- Tip type: Soldered connectors
- Outputs: 3 signal pins - COM (common), NO (normally open), NC (normally closed)
- Degree of protection: IP65 - dust and splash resistance
- Mechanical durability: > 1,000,000 cycles
Application advantages:
- High resistance to vandalism - ideal for public places
- Green LED ensures readability of action signaling
- Simple installation in 16 mm holes thanks to threaded housing and nut
- Versatility - For electrical installations, access control systems and DIY projects
- Three leads enable easy configuration in logic and control circuits
Directions for use:
- Do not exceed the allowable backlight voltage (220V AC)
- Protect contacts from moisture in outdoor applications
- Avoid installation in areas subject to direct flooding with water
- Button does not function as a switch - it only works when pressed
- Correctly label and connect the pins: COM (common), NO (closes the circuit when pressed), NC (disconnects the circuit when pressed)
Write your opinion
ColorsGreen
Brand
Entity responsible for this product in the EU
Wide Top Industrial LimitedMore
ProducerWide Top Industrial LimitedAddress:
DongYuan Road, Woshi, Qiaodong Street,Xiangqiao District ,Chaozhou No 32Postal Code: NO 41-47City: ChaozhouCountry: ChinyPhone number: +86-13715708628E-mail: wide@aliyun.com
Responsible entityABC-RC Firma LedaAddress:
Judy Tadeusza 9Postal Code: 34-122City: NidekCountry: PolskaPhone number: 333-003-080E-mail: pomoc@abc-rc.pl
Symbol
21562
Producer code
5904384781447
Colors
Green
Status
New
Brand
Inna
