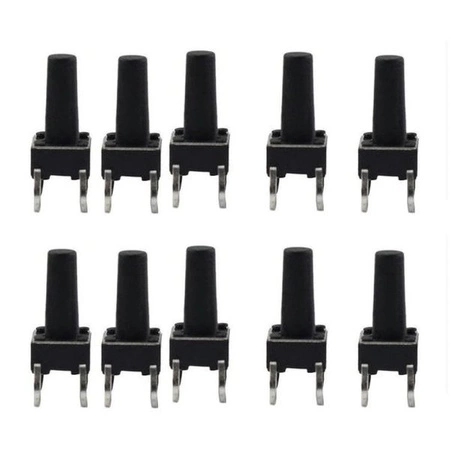

TACT microstick 6x6x10mm - microswitch - 10 pcs.
- A set of 10 pieces of TACT microswitch buttons are some of the basic electronic components that can be found in almost every digital circuit. The TACT microstick can be used as a replacement item, for your own projects, etc.
A set of 10 pieces of TACT microswitch buttons are some of the basic electronic components that can be found in almost every digital circuit. The TACT microstick can be used as a replacement item, as well as for your own projects, etc.
Switch type: microswitch
Type: monostable
Number of stable positions: 1-position
Contact configuration: SPST-NO
DC contact load capacity (with resistive load): 0.05 A / 12 VDC
Mounting: THT
Switching force: 1N
Body dimensions: 6 x 6mm
Height of button (measured from PCB): 10mm
Switching method: OFF-(ON)
Shape of the key round
Raster of leads: 4.5x6.5mm
Operating temperature: -25...70°C
Button color: black
Printable leads: simple
Contact resistance max.: 50mΩ
Insulation resistance min.: 100MΩ
Soldering temperature: 250°C
TACT microstick 6x6x10mm - microswitch - 10 pcs.
