Thermal fuse TF 216st C - 10A - THT thermal protection

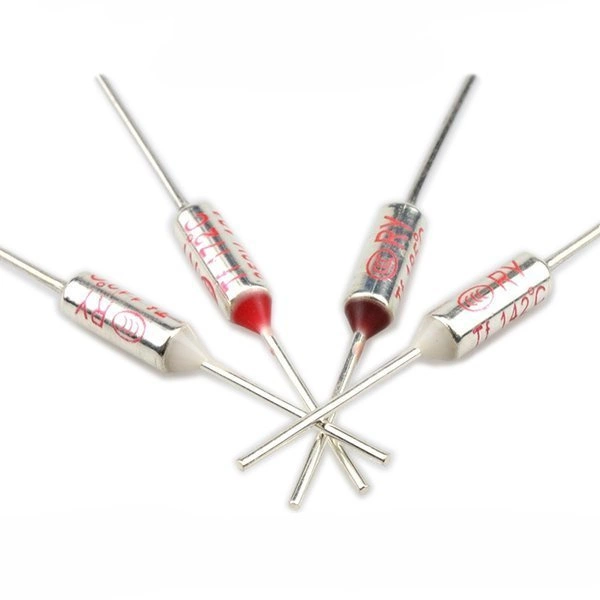

Thermal fuse made in a hermetic metal housing with axial leads. Activation of the fuse occurs when the ambient temperature exceeds the melting point of the safety element and then after the melting point, the coil springs are unwound and the electrical connection is broken.

Fuses are disposable, once they are tripped they must be replaced with new ones.

Thermal protection is an additional independent protection against overheating

The temperature fuse is suitable for a wide variety of applications, such as:

• household appliances (e.g. irons, coffee makers, rice cookers, toasters, refrigerators)
• household appliances (such as air conditioners, fans , humidifiers , electric heaters)
• personal hygiene devices (such as hair dryers, curling irons, razors, shavers)
• commercial electrical equipment ( copiers , laser printers , fax machines , power strips)
• electrical components (such as transformers , solenoid valves , AC power supplies)

Technical data

• current: 10A
• limiting temperature: 216°C (degrees Celsius)
• maximum voltage: 250 VAC
• Mounting type: through-hole THT
• dimensions:
• diameter: 4mm
• length: 11.5mm
• lead lengths: 19mm, 34mm

Included

• Thermal fuse TF 216° C - 10A - thermal protection - 1pc
