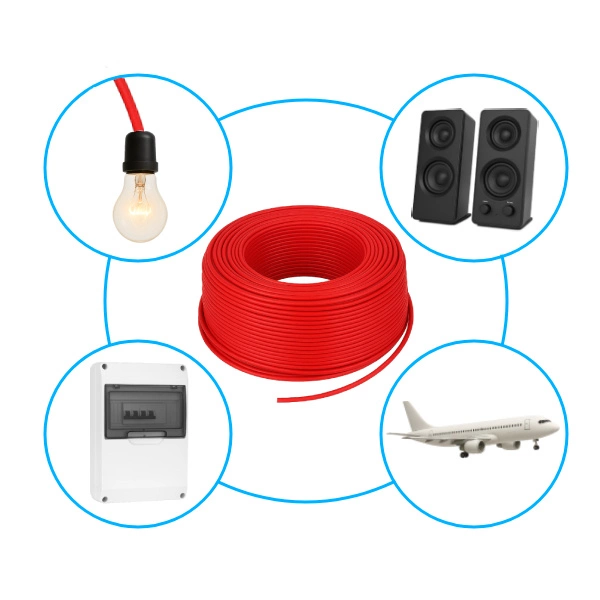

Tinned copper silicone cable 16AWG - 252 conductors - 1.3mm2 - red - flexible
Product code: 4646
- 1.3mm² 252 conductors (16 AWG) current wires with soft silicone insulation that allows the cable to be bent and kinked as desired. Cable allows operation at temperatures up to 200 degrees. Very convenient to use cable with a wide range of applications.
Silicone cable 16AWG - 252 conductors - 1.3 mm2 - red - ABC-RC
Current wires of 1.3mm² (16 AWG) in red soft flexible silicone insulation, which allows the cable to be bent and kinked as desired. Silicone cables allow operation at temperatures from -65°C to 200°C.
Very convenient to use flexible cable with a wide range of applications from electronics to modeling, in particular:
- electrical switchboards,
- electric motors,
- heating elements,
- lighting,
- ventilation and air conditioning systems,
- plastics processing,
- construction of generators and transformers,
- industrial electronics,
- models of airplanes, cars, ships,
- batteries,
- etc.
Product features
- Wire dimensions are given in US unit of measure "AWG".
- Flexible insulation made of silicone.
- Temperature resistant cable insulation from -65°C to 200°C.
- Silicone coating does not harden at low temperature.
- Resistance to acids and alkalis, oxidants, oils, alcohols.
- Very convenient to use, have a wide range of applications in making electrical connections.
- Indispensable for connections in the model power system.
- Soft and resistant insulation and dense wire makes it easy to bend and lay the wires in the model.
Technical data
- Cable color: red
- Longest stretch on the roll 200m
| Connector | 10AWG | 12 AWG | 13 AWG | 14 AWG | 16 AWG | 18 AWG | 20 AWG | 22 AWG | 24 AWG | 26 AWG |
| Current max. (A) | 140.6 A | 88.4 A | 65 A | 55.6 A | 42 A | 22 A | 13.87 A | 8.73 A | 5A | 3.5A |
| Conductor diameter (mm2) | 5.3 | 3.4 | 2.5 | 2.07 | 1.27 | 0,75 | 0,50 | 0,33 | 0,20 | 0,14 |
| Outer diameter | 5.5mm | 4.5mm | 4.0mm | 3.5mm | 3.0mm | 2.3mm | 1.8mm | 1.7mm | 1.6mm | 1.5mm |
Included
- 16AWG silicone wire in red - 1mb
Write your opinion
Colorred
Brand
Entity responsible for this product in the EU
Wide Top Industrial LimitedMore
ProducerWide Top Industrial LimitedAddress:
DongYuan Road, Woshi, Qiaodong Street,Xiangqiao District ,Chaozhou No 32Postal Code: NO 41-47City: ChaozhouCountry: ChinaPhone number: +86-13715708628E-mail: wide@aliyun.com
Responsible entityABC-RC Firma LedaAddress:
Judy Tadeusza 9Postal Code: 34-122City: NidekCountry: PolandPhone number: 333-003-080E-mail: pomoc@abc-rc.pl
Symbol
4646
Producer code
5904384712984
Cable cross sectionMore
Information about the cross-section of electrical wires
16AWG
Color
red
Status
New
Brand
Inna
unbranded
Number of strands
1
Cable length
1
Type
cable
Shape of the cable
Round
Conductor cross section (mm²)
Other value
Cable type
electric
flexible (rope)
car
insulated with rubber
Rodzaj przewodu
Other
Manufacturer code
4646
Ask for this product
Guide
| Size | AWG | mm2 |
|---|
