TT D65 drive kit - DC 6V motor with 65mm wheel - with 1:48 transmission

Want to build your own robot or remote-controlled vehicle?

Our D65 Drive Kit with DC 6V motor and 1:48 gearbox is the perfect solution for you.

• With an included 65mm diameter wheel with a rubber tire, this kit is a great starting point for a variety of robotics and automation projects.
• Motor with gearbox and matching wheel (rubber tire) allows you to quickly build a wheeled robot or vehicle.

Advantages of gearbox with motor and wheel for robotics:

1. Easy to Assemble: Kit includes everything you need to build a wheeled robot or vehicle.
2. High Performance: Engine with 1:48 gearing provides optimum speed and thrust.
3. Versatility: Double-sided axis leads allow installation of additional components such as encoders.
4. Durability: Wheel with rubber tire for excellent grip and durability.
5. Compatibility: Ability to easily control the motor using the L298N controller module and Arduino platform.

Applications

• Wheel works
• Remote-controlled vehicles
• 3D Printers
• Educational projects
• Industrial automation

• Included dC 6V motor with 1:48 gearing
• The transmission has double-sided axle leads (per wheel and ew. encoder)
• Included 65 mm diameter wheels with rubber tires
• Rated motor supply voltage: 6 V,
• Speed of the output axis of the geared motor: 200 RPM, 100RPM - 3V
• Current consumption when supplied with 6 V: up to 350 mA.

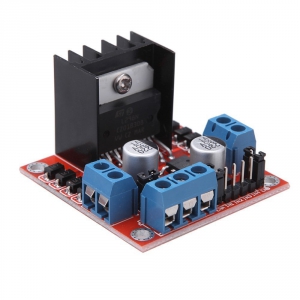

• An example of a controller for a DC motor - Controller module L298N
• Below is a video showing how such a motor can be easily controlled via Adruino

• Name: drive D65: 6V with geared motor and 65mm wheel
• Supply voltage: 3-6V
• No-load current consumption: 100mA
• Current consumption under load: 350mA
• Thrust on transmission (6V): 5.5 KG/cm
• Motor speed: 200 rpm
• Engine dimensions:
• Axle diameter gear leadout: 5mm / bevelled at 3.5mm
• Wheel dimensions:

We control a DC motor from an Arduino video courtesy of Elektro Maras - Youtube channel Elektro Maras
