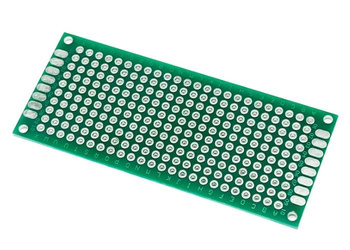

Universal board 30x70mm - PI22Z - double-sided - PCB prototype construction
Product code: 10128
- Universal 30x70mm board allows you to construct any electronic circuit. Double-sided board with metallized standard holes with a 2.54mm raster allows for simple and fast assembly of electronic circuits and components.
Universal board 30x70mm - PI22Z - double-sided - PCB prototype construction
Universal 30x70mm board allows you to construct any electronic circuit. Double-sided plate with metallization of standard holes with 2.54mm raster allows simple and fast installation of electronic components.
We will assemble and disassemble any electronic circuit on a PCB board np.:
- gold-pin strips
- all kinds of IDC connectors
- dIP and DIL sockets for integrated circuits (both sheet and precision)
- lEDs
- rectifier system
- bridge
- transistor
- stabilizer
- integrated circuits in DIP housings
- capacitor
- resistor
- etc.
Product features
- They will come in handy when building prototypes and in short production runs.
- Suitable for creating electrical, electronic circuits, prototypes using through-hole components (THT).
- Useful for soldering components on the top or bottom side of the board.
- An integral part of every prototype and workshop.
Technical data
- plate dimensions: 30 x 70 mm
- insert thickness: 1.6 mm
- hole spacing: 2.54 mm
- double-sided with metallized holes
- double-sided soldermask
Included
- Universal board 30x70mm - PI22Z - double-sided - PCB prototype construction - 1 pc.
Write your opinion
Brand
Entity responsible for this product in the EU
Wide Top Industrial LimitedMore
ProducerWide Top Industrial LimitedAddress:
DongYuan Road, Woshi, Qiaodong Street,Xiangqiao District ,Chaozhou No 32Postal Code: NO 41-47City: ChaozhouCountry: ChinaPhone number: +86-13715708628E-mail: wide@aliyun.com
Responsible entityABC-RC Firma LedaAddress:
Judy Tadeusza 9Postal Code: 34-122City: NidekCountry: PolandPhone number: 333-003-080E-mail: pomoc@abc-rc.pl
Symbol
10128
Producer code
5904384702213
Manufacturer
abc-rc
inny
Other
Model
PCB
PRO-1177
Status
New
Rodzaj
double-sided
Manufacturer code
30x70
Product width
2
Length
8
Thickness
3
