Input PlugXT60
XT60+ connectors with shield - XT60 Plus connector - complete high current connector - 1 pair - AMASS
- sion of XT60+ plugs. However, the main difference is the extra layer of insulation, which provides better protection against accidental shorting or short circuiting of connections. As a result, users can rest assured that their connections are secure and

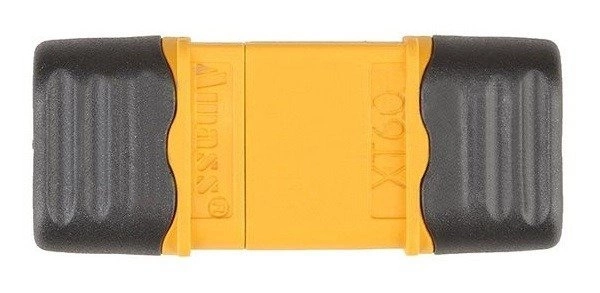

XT60+ connectors with shield - XT60 Plus Connector
Description
New XT60+ plugs provide best polarization isolation for soldered connections. These plugs are sure to become the most popular connector for hobbyists. The basic design of the original XT60 connector has been retained and is compatible with the newer version. But now, thanks to the snaps on the ends, there is no need for heat shrink tubing. Serrated edges for easy handling of plugs.
Technical data
- Material: Gold-plated copper
- Housing: Nylon/PA
- Maximum Continuous Current / Peak Current: 60A/100A
- Weight: 7.72g
- Temperature resistance: -20°C~120°C
- Recommended wire: 12AWG
- Manufacturer: AMASS
Included
- Connector XT60 Plus with cover - 1 pair
The cables shown in the photos are NOT included
