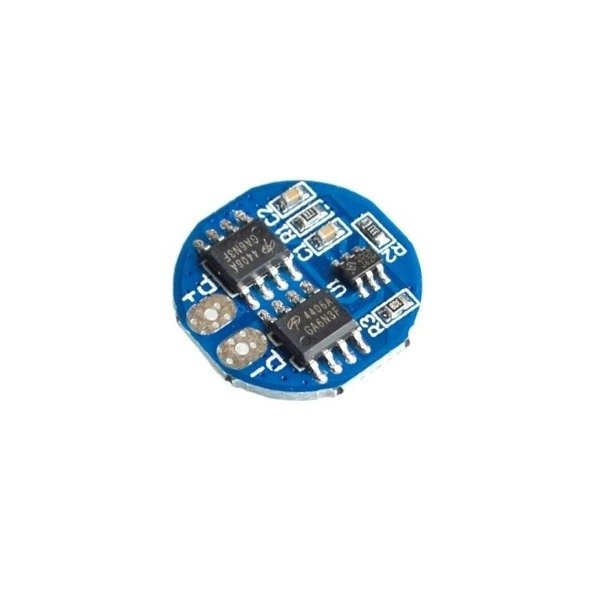

BMS PCM PCB charging and protection module for 18650 cells - 2S - 5A
Product code: 9150
- Charging, discharging and cell protection module for proper charging. This small board will protect the 18650 cell from overcharging, overdischarging, and short-circuiting.
BMS PCM PCB charging and protection module for 18650 cells - 2S - 5A
$1.02
18650 2S 5A cell charging module
Charging, discharging and cell protection module for proper charging. This small board will protect the 18650 cell from overcharging, overdischarging, and short-circuiting.
More information about BMS modules, their application and how they work HERE.
Technical data
- Maximum charging voltage: 4,25-4,35 ± 0,05 V
- Dimensions: 17.5 * 17.5 * 3.2 mm
- Minimum discharge voltage: 2,5-3,0v ± 0.05v
- Maximum operating current: 5A
- Operating temperature: from -40 to +50 ℃
- Maximum instantaneous current: 7A
- Storage temperature: -40 - +80 ℃
- Internal resistance: less than 300 mOhm
- Short circuit protection
- Input voltage: 8.4V-9V
Included
- Charging and protection module for 18650 cells - 2S - 5A
