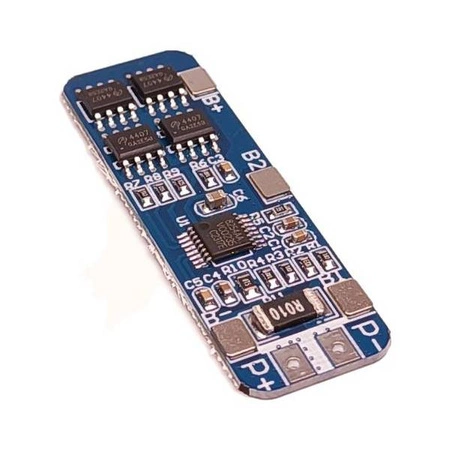

BMS PCM PCB charging module Li-ion 3S 12V 6-8A - for 18650 cells
Product code: 8580
- An electronic circuit that protects the batteries from being discharged and, at the same time, a charger for these batteries. Allows you to build a safe battery pack that does not need to be charged with special chargers for li-ion batteries.
Li-ion 3S 12V 6-8A charging module
Electronic system that protects batteries from discharging and at the same time a charger for these batteries.
Allows you to build a safe battery pack that does not need to be charged with special chargers for li-ion batteries.
The 2-in-1 module will keep the cells in the best possible conditions without allowing them to overcharge as well as over-discharge. One module here replaces the charger and security module.
More information about BMS modules, their application and how they work HERE.
Product features
- Short circuit protection.
- Protection against overcharging.
- Excessive Discharge Protection.
- Overcurrent protection.
- Can be used for a variety of lithium cells 3.7V.
- Compact size and lightweight.
- Safety assurances battery.
Technical data
- Size: 54x18x4mm
- Maximum discharge current: 10A
- Overload voltage detection: 4.25-4.35V ± 05 V
- Over-discharge voltage detection: 2.3-3.0V ± 05V
- Maximum operating current: 5A-8A
- Undetermined current: 9A-10A
- Operating temperature: -40 ~ 50 degrees
- Storage temperature: -40 ~ 80 degree
- Resting current: pon. 6uA
- Internal resistance: pon. 60mΩ
- Lifetime: pow. 30,000 hours
Included
- Li-ion 3S 12V 6-8A charging module - for 18650 cells - 1pc.
