DC 21V brush motor - RS550 - 12 teeth - high torque
DC 21V brush motor - RS550 - 12 teeth - high torque
DC 21V brush motor - RS550 - 12 teeth - high torque
DC 21V brush motor - RS550 - 12 teeth - high torque
DC 21V brush motor - RS550 - 12 teeth - high torque
DC 21V brush motor - RS550 - 12 teeth - high torque
DC 21V brush motor - RS550 - 12 teeth - high torque
DC 21V brush motor - RS550 - 12 teeth - high torque
DC 21V brush motor - RS550 - 12 teeth - high torque
DC 21V brush motor - RS550 - 12 teeth - high torque
DC 21V brush motor - RS550 - 12 teeth - high torque
DC 21V brush motor - RS550 - 12 teeth - high torque
DC 21V brush motor - RS550 - 12 teeth - high torque
DC 21V brush motor - RS550 - 12 teeth - high torque
DC 21V brush motor - RS550 - 12 teeth - high torque
DC 21V brush motor - RS550 - 12 teeth - high torque
DC 21V brush motor - RS550 - 12 teeth - high torque
DC 21V brush motor - RS550 - 12 teeth - high torque
DC 21V brush motor - RS550 - 12 teeth - high torque
DC 21V brush motor - RS550 - 12 teeth - high torque
DC 21V brush motor - RS550 - 12 teeth - high torque
DC 21V brush motor - RS550 - 12 teeth - high torque

DC 21V brush motor - RS550 - 12 teeth - high torque

Product code: 18583
+ Add to compareAdd to shopping list
  • DVC class 550 brush motor with an axle length of 9mm and a diameter of 3.1mm, powered by a 12V DC power supply. Dedicated to use in robotics, DIY projects, electrical devices.
Size
uniwersalny
$7.66
incl. VAT / pcs.
Lowest price in 30 days before discount: / pcs.
Regular price: / pcs.
Order more, pay less!
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Deferred Payments. Buy now, pay later, if you don't return it
Buy now, pay later - 4 steps
When choosing a payment method, select PayPo.PayPo - buy now, pay later
PayPo will pay your bill in the store.
On the PayPo website, verify your information and enter your social security number.
After receiving your purchase, you decide what suits you and what doesn't. You can return part or all of your order - then the amount payable to PayPo will also be reduced.
Within 30 days of purchase, you pay PayPo for your purchases at no additional cost. If you wish, you spread your payment over installments.

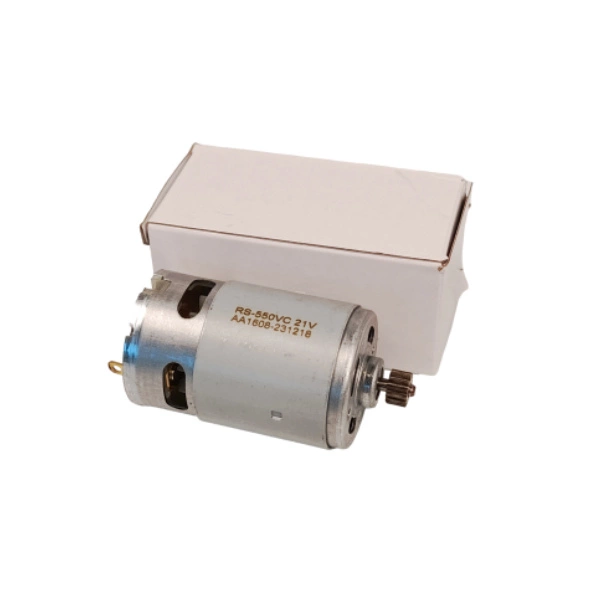

DC 21V class 550 brush motor
- high torque

Silnik szczotkowy DC 21V

DC brush motor class 550 with an axis length of 9mm and a diameter of 3.1mm, powered by DC 21V.

Dedicated for use in robotics, DIY projects, electrical devices, electric drives, etc. I also offer brushstick including new brushes as spare part 18592

Typical DC motors consist of the following components:

  • rotor, through which the outwardly leading axis passes,
  • winding, which is wound on the rotor,
  • the stator surrounds the rotor, which contains permanent magnets,
  • commutator, which switches the windings on the rotor,
  • brushes supplying power to the commutator.
  • built-in fan provides cooling to the winding

silnik szczotkowy

Shaft length: 9 mm (axis length above step level)

Shaft diameter: 3 mm

Motor diameter: 35.5 mm

Motor length: 75 mm

Weight: 215g

Mounting hole spacing: 25mm

Mounting holes diameter: 2x M3

RPM: 20000RPM at 21V

No-load current consumption: 1.1A(21V)

Max. current consumption: 10A

Rated power: 120W

  • DC 21V brush motor - 550 class - 1 pc.
