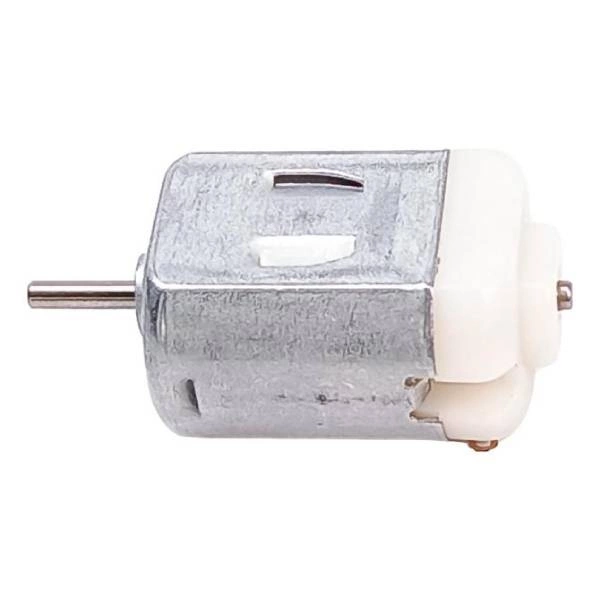

DC 3V brush motor class 130
Product code: 6412
- Class 130 miniature DC motor. Ideal as a drive for various mechanical structures, RC models and robots.
DC 3V motor class 130 - DC brush motor
Class 130 miniature DC motor, ideal as a drive for various mechanical structures, RC models and robots.
The 130-class engine and MT78 type, which is the most popular type of mini engine, makes it suitable for use as a replacement in, for example TT D65 drive kit.
Product description
- DC brush motor for small mechanical devices and robots
- Standard size DC motor type 130
- These motors operate over a slightly wider range of supply voltages from 1.5 to 3.5V
- This range makes them ideal for control via Arduino chips powered by a low voltage of 5V
- The engine fits geared drives
- Thanks to its low current consumption, this motor can be powered from the same source as the control electronics.
- A DC motor controller can also be used to control these motors - Controller module L298N
Technical parameters
- Supply voltage: 1.5V - 3.5V
- Rated supply voltage: 3V
- Maximum current consumption: 150mA
- No-load current consumption: 70mA
- Maximum torque: 20g*cm
- Rated torque: 10g*cm
- No-load speed: 8200rpm ±1800rpm
- Shaft diameter: 2.0mm
- Shaft length: 8.0mm
- Dimensions: 27.5mm x 20.1mm x 15.1mm
- Weight: 17.5g
We control a DC motor from an Arduino
Video courtesy of Elektro Maras - Elektro Maras Youtube channel
