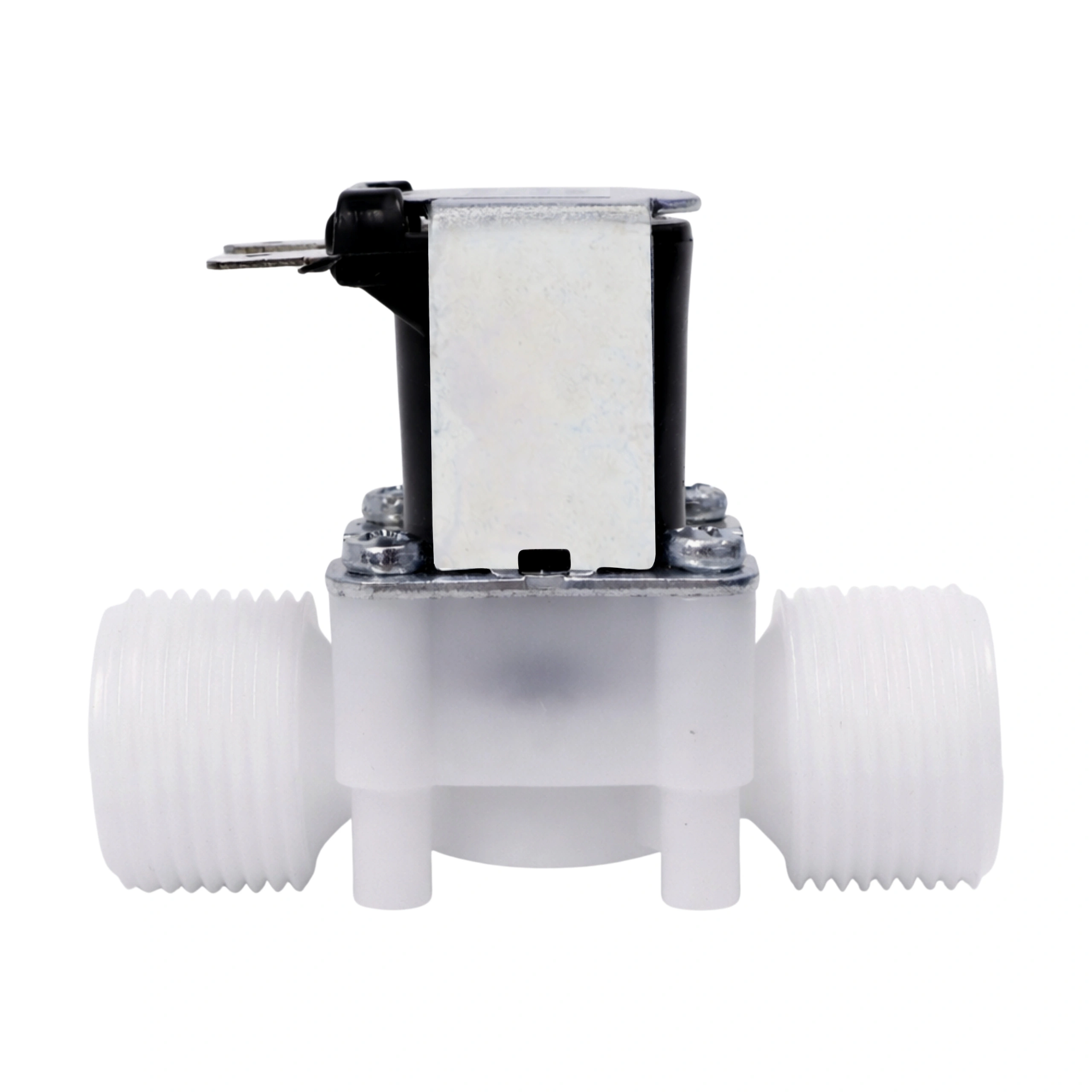

Solenoid valve 220V - 0.02~0.8MPA - 3/4 inch solenoid valve

The 220V solenoid valve with a pressure range of 0.02 to 0.8 MPa and a 3/4 inch thread is an electromechanical device that controls the flow of medium in hydraulic or pneumatic systems. Here are the main features of this product:

• Power supply: Operates with 220V AC mains voltage, which is standard in many industrial and domestic installations.
• Pressure range: Capable of operating over a pressure range of 0.02 MPa (about 0.2 bar) to 0.8 MPa (about 8 bar), allowing use in a variety of applications, from low to medium pressure.
• Thread size: Threads with a diameter of 3/4 inch, which is a common size to fit standard installations.
• Type of valve: Electromagnetic, which means that its operation is electrically controlled and can be remotely controlled by various types of electronic systems.
• Fabrication material: High-quality materials resistant to corrosion and chemical agents, which increases the durability of the valve and safety of use.
• Speed of action: Rapid opening and closing of flow, which is critical in systems that require immediate response.
• Applications: It can be used in irrigation systems, cooling systems, industrial installations, as well as in home heating systems or as part of process automation.
• Assembly: Usually easy to install and replace, fits standard pipes and connectors.

This solenoid valve is a reliable solution for precisely controlling the flow of water or other media over a wide range of pressures, offering ease of control and adaptation to diverse technical needs.

Throughput:

• 0.02Mpa > 1.5L/min
• 0.10Mpa > 7L/min
• 0.30Mpa > 12L/min
• 0.80Mpa ~ 20L/min

Technical data

• supply voltage : 220V AC
• locked in the resting position
• 3/4 inch thread
• times: opening ≤ 0.15s, closing ≤ 0.3s
• pressure range: 0.02-0.8Mpa
• max. liquid temperature: 0-100°C
• connection: connectors 6.3mm
• dimensions max.: 65x58x33mm
