4x20 LCD display - Blue - with HD44780 compatible controller - QC2004A
4x20 LCD display - Blue - with HD44780 compatible controller - QC2004A
4x20 LCD display - Blue - with HD44780 compatible controller - QC2004A
4x20 LCD display - Blue - with HD44780 compatible controller - QC2004A
4x20 LCD display - Blue - with HD44780 compatible controller - QC2004A
4x20 LCD display - Blue - with HD44780 compatible controller - QC2004A
4x20 LCD display - Blue - with HD44780 compatible controller - QC2004A
4x20 LCD display - Blue - with HD44780 compatible controller - QC2004A
4x20 LCD display - Blue - with HD44780 compatible controller - QC2004A
4x20 LCD display - Blue - with HD44780 compatible controller - QC2004A
4x20 LCD display - Blue - with HD44780 compatible controller - QC2004A
4x20 LCD display - Blue - with HD44780 compatible controller - QC2004A
4x20 LCD display - Blue - with HD44780 compatible controller - QC2004A
4x20 LCD display - Blue - with HD44780 compatible controller - QC2004A
4x20 LCD display - Blue - with HD44780 compatible controller - QC2004A
4x20 LCD display - Blue - with HD44780 compatible controller - QC2004A
4x20 LCD display - Blue - with HD44780 compatible controller - QC2004A
4x20 LCD display - Blue - with HD44780 compatible controller - QC2004A
4x20 LCD display - Blue - with HD44780 compatible controller - QC2004A
4x20 LCD display - Blue - with HD44780 compatible controller - QC2004A

4x20 LCD display - Blue - with HD44780 compatible controller - QC2004A

Product code: 6311
+ Add to compareAdd to shopping list
  • Universal alphanumeric LCD display, powered by 5 volts. It is characterized by simple operation, high availability and numerous support for many microcontrollers. 4x20 LCD display with HD44780 compatible controller - QC2004A
Size
uniwersalny
$5.99
incl. VAT / pcs.
Lowest price in 30 days before discount: / pcs.
Regular price: / pcs.
Order more, pay less!
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Deferred Payments. Buy now, pay later, if you don't return it
Buy now, pay later - 4 steps
When choosing a payment method, select PayPo.PayPo - buy now, pay later
PayPo will pay your bill in the store.
On the PayPo website, verify your information and enter your social security number.
After receiving your purchase, you decide what suits you and what doesn't. You can return part or all of your order - then the amount payable to PayPo will also be reduced.
Within 30 days of purchase, you pay PayPo for your purchases at no additional cost. If you wish, you spread your payment over installments.
After paying for this item you will be awarded 2.48 PTS.

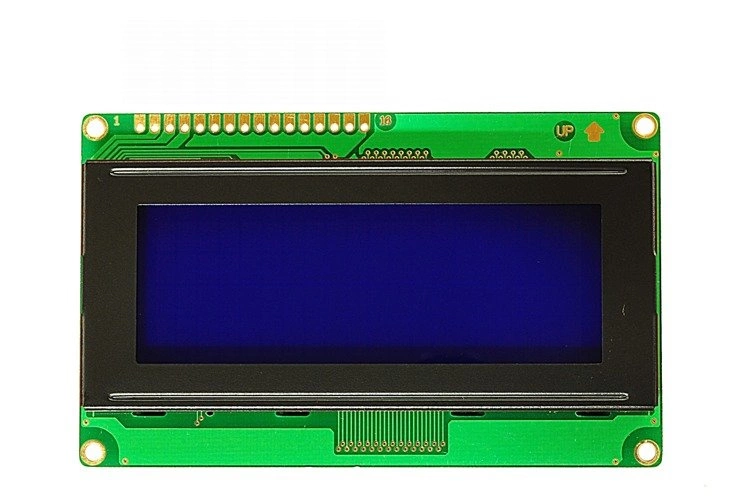

Alphanumeric LCD 4x20 HD44780 - Blue LCD QC2004A

wyswietlacz lcd 4x20 hd44780

Universal alphanumeric LCD 4x20 , powered by 5 volts.

It is characterized by simple operation, high availability and numerous support for many microcontrollers.
With libraries, you can easily hook up the display to an Arduino and display subtitles. The library gives you the ability to select the column and row in which to display the inscription, or string of digits.
So you can display a great deal of information in a clear way.
The display is integral in the world of electronics, because sometimes the project will not be near a computer and there will be no way to display information on its screen.
If the display uses too many pins, you can buy an I2C converter so that the LCD will be connected through 4 wires (power +, minus -, SCL and SDA).

Product features

  • Universal alphanumeric LCD display module 4x20 characters.
  • 4x20 LCD display
  • Blue backlighting
  • White marks
  • HD44780 compliant driver.
  • Ability to define your characters
  • In the standard set of libraries and sample programs downloaded from the Arduino environment is the LiquidCrystal library, which allows you to operate the display.
  • Control - The display can be controlled in modes:
    • 8-bit without reading the busy flag - eight data bus lines and two control lines (RS, E - RW connected to ground) are required for transmission.
    • 8-bit with busy flag reading - eight data bus lines and three control lines (RS, E, RW) are required for transmission.
    • 4-bit with read busy flag- four data bus lines and three control lines(RS, E, RW) are needed for transmission.
    • 4-bit without reading the busy flag - transmission requires four data bus lines and two control lines (RS, E - RW connected to ground).

Our expert suggests

The display works with the liquid crystal library, but the following changes are needed: Connecting to the microcontroller: RS - pin 12, RW - pin 14, E - pin 11, D4 - pin 7, D5 - pin 8, D6 - pin 9, D7 - pin 10.

The program from the Arduino side looks as follows:
ardu

When we have an I2C converter soldered to the display Sketch presents itself like this:

c

Technical data

  • Power supply: 5V
  • Average current consumption: 10 mA
  • Dimensions: 96x60x33.5
  • Sign dimensions: 2.45 x 5.00 mm
  • Operating temperature range: -20 to +70 °C

Connector outputs

  1. VSS Mass
  2. VDD Power +5V
  3. V0 Contrast
  4. RS Selection of display instruction register (low state) or data register(high state)
  5. R/W Read (low state) / Write (high state)
  6. E Unlocking the display
  7. DB0
  8. DB1
  9. DB2
  10. DB3
  11. DB4
  12. DB5
  13. DB6
  14. DB7
  15. LED A Backlight power supply +5V
  16. LED K Backlight weight

Video presentation - Connecting the LCD 1602 to the Arduino - a model with fewer characters

Example of connection to a microcontroller - The diagram shows the simplest way to connect the circuit to any microcontroller using a single-wire interface.

Wyświetlacz LCD 2x16 HD44780

Instructions for 2x16 HD44780 LCD Display

LCD-20x4b

Write your opinion
Your score:
5/5
Add a picture:
Brand
ABC-RC
Entity responsible for this product in the EU
JH Global Trading (HK) Co., LimitedMore
ProducerJH Global Trading (HK) Co., LimitedAddress: Room G, Floor 10, Block A, Duhui Electronic Building, Huaqiang Road 10Postal Code: CN 518031City: ShenzhenCountry: ChinyPhone number: 86 075582557429E-mail: info@jh-electronica.com
Responsible entityABC-RC Firma LedaAddress: Judy Tadeusza 9Postal Code: 34-122City: NidekCountry: PolskaPhone number: 333-003-080E-mail: pomoc@abc-rc.pl
Symbol
6311
Producer code
5904384720224
Status
New
Manufacturer
unbranded
Model
LCD4x20
Rodzaj
display
Manufacturer code
6311
