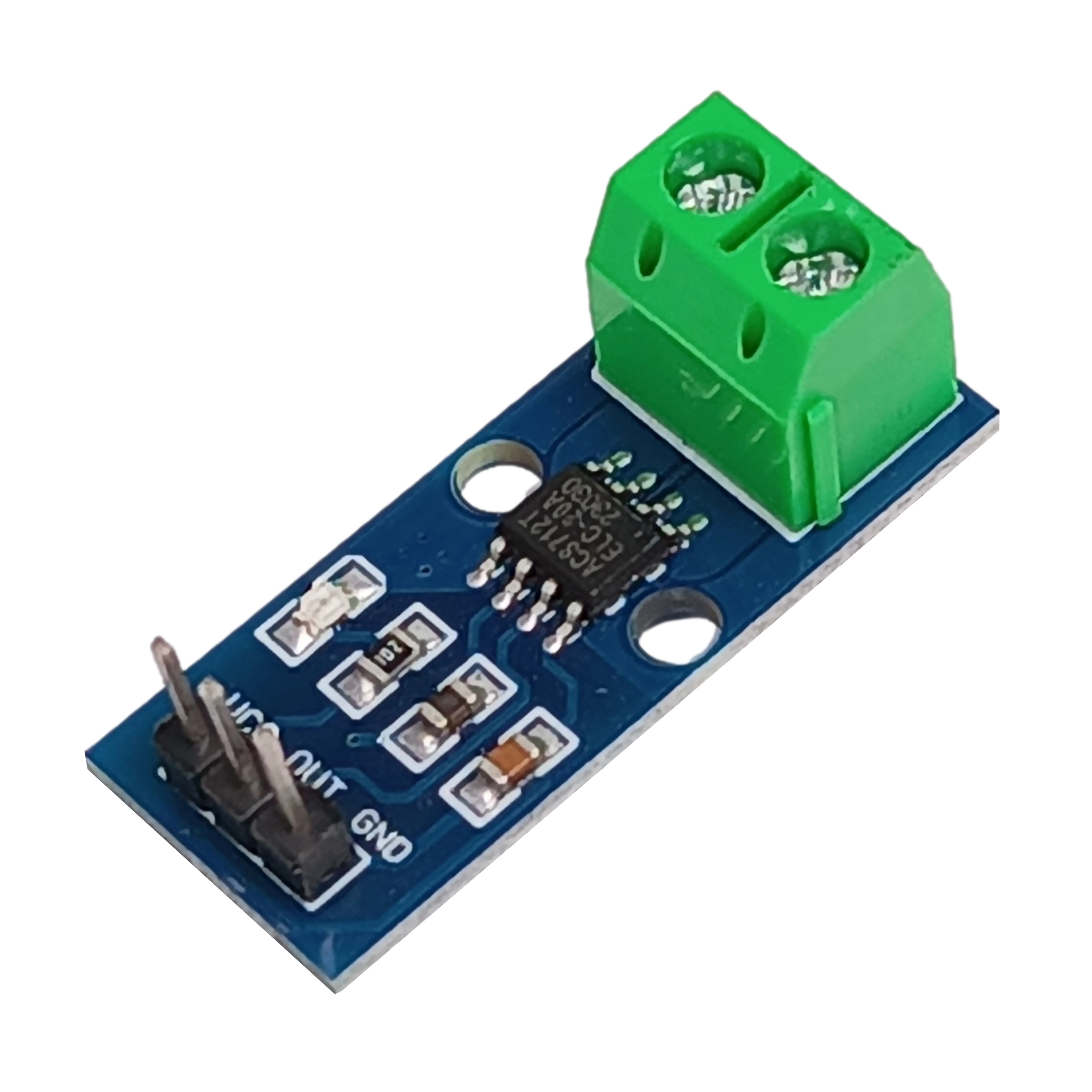

ACS712 current measurement module - 20A - current sensor / sensor - ARDUINO
- ACS712 module for max 20A current measurement based on Hall effect for use in arduino, avr, pic and other projects.
ACS712 current measurement module - 20A
ACS712 module for max 20A current measurement based on Hall effect for use in arduino, avr, STM, pic and other projects. The maximum measurement current cannot be measured for a long period of time.
Technical data
- Module equipped with ACS712 chip
- Max measurement current: 20A
- Output sensitivity: 100mV/A
- Supply voltage: 5V
- Power LED
- Dimensions: 31x13mm
Current value reading program
Included
- ACS712 current measurement module - 1 pc.
