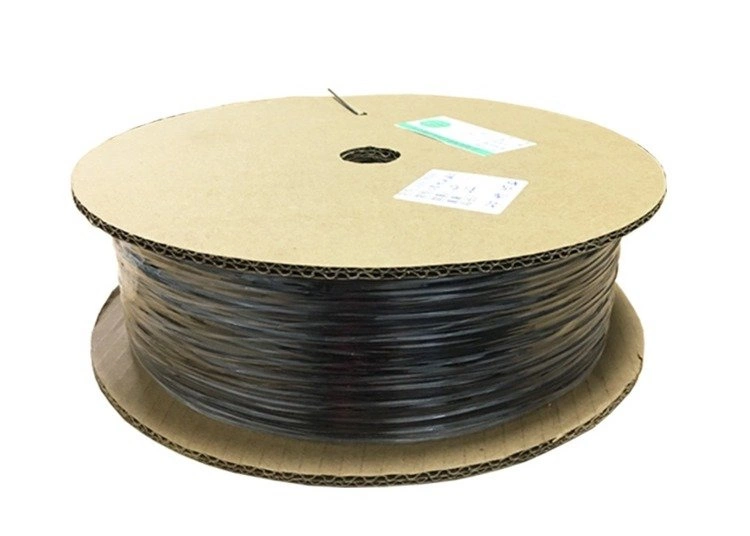

Coaxial cable RG174 - antenna - RF 1.13 - impedance 50 Ohm
Product code: 17558
- RF coaxial cable with an outer diameter of 1.13 mm is a very thin signal cable for radio equipment, shortwave radio, in WIFI systems, for radio and TV antennas, IPEX, SMA. In modeling, it is used as an antenna wire.
Coaxial cable RG174 - antenna - RF 1.13 - impedance 50 Ohm
Description
RF coaxial cable with an outer diameter of 1.13 mm is a very thin silver-plated signal cable. Dedicated to radio, walkie-talkie equipment, in WIFI systems, for cable and digital TV networks and radio and TV antennas, etc. In modeling, it is used as an antenna wire. Fits IPEX, SMA, etc. connectors.
Technical data
- wire material: silver-plated copper
- insulation: FEP
- braid: silver-plated copper
- outer shell: FEP
- wave impedance: 50 Ω ±3
- working temperature: -40 ~ 90°C
- attenuation:
- 1GHz - ≤ 1.5 DB/m
- 2GHz - ≤ 2.2 DB/m
- 3GHz - ≤ 2.8 DB/m
- 4GHz - ≤ 3.4 DB/m
- 5GHz - ≤ 3.8 DB/m
- 6GHz - ≤ 4.3 DB/m
Included
- Coaxial cable - antenna - RF 1.13 - impedance 50 Ohm - 1 mb
