DC-DC converter 400W - 10V to 60V - 12A - STEP-UP
DC-DC converter 400W - 10V to 60V - 12A - STEP-UP
DC-DC converter 400W - 10V to 60V - 12A - STEP-UP
DC-DC converter 400W - 10V to 60V - 12A - STEP-UP
DC-DC converter 400W - 10V to 60V - 12A - STEP-UP
DC-DC converter 400W - 10V to 60V - 12A - STEP-UP
DC-DC converter 400W - 10V to 60V - 12A - STEP-UP
DC-DC converter 400W - 10V to 60V - 12A - STEP-UP
DC-DC converter 400W - 10V to 60V - 12A - STEP-UP
DC-DC converter 400W - 10V to 60V - 12A - STEP-UP
DC-DC converter 400W - 10V to 60V - 12A - STEP-UP
DC-DC converter 400W - 10V to 60V - 12A - STEP-UP

DC-DC converter 400W - 10V to 60V - 12A - STEP-UP

Product code: 20185
Series: Inverter Modules
+ Add to compareAdd to shopping list
  • The 400W STEP-UP DC-DC converter raises the input voltage from 10V to a higher level with a current of up to 15A. It is ideal for systems requiring stable and increased voltage, supporting output current up to 60A.
Size
uniwersalny
$5.01
incl. VAT / pcs.
Lowest price in 30 days before discount: / pcs.
Regular price: / pcs.
Order more, pay less!
14 days for easy returns
Find out in which store you can check the product and buy it right away
DC-DC converter 400W - 10V to 60V - 12A - STEP-UP
DC-DC converter 400W - 10V to 60V - 12A - STEP-UP
uniwersalny
Safe shopping
Deferred Payments. Buy now, pay later, if you don't return it
Buy now, pay later - 4 steps
When choosing a payment method, select PayPo.PayPo - buy now, pay later
PayPo will pay your bill in the store.
On the PayPo website, verify your information and enter your social security number.
After receiving your purchase, you decide what suits you and what doesn't. You can return part or all of your order - then the amount payable to PayPo will also be reduced.
Within 30 days of purchase, you pay PayPo for your purchases at no additional cost. If you wish, you spread your payment over installments.
DC-DC converter 400W - 10V to 60V - 12A - STEP-UP
$5.01

DC-DC converter 400W - 10V to 60V - 15A - STEP-UP

Przetwornica DC-DC 400W

The 400W STEP-UP DC-DC converter is a device that increases the input voltage from 10V to a higher voltage with a maximum current of 15A.

Its main task is to raise the input voltage to the desired output level, while maintaining a constant output current of up to 60A.

With its performance and wide regulation range, it is ideal for applications requiring stable and higher output voltage, such as power systems, electronic projects or industrial applications.

Technical data

  • iN voltage range: from 8.5V to 50V
  • output voltage range: 10V to 60V
  • output power: maximum 400W
  • adjustable current range
  • recommended output current: up to 12A
  • maximum current up to 15A
  • performance: 96%
  • current regulation: 0.2A to 12A
  • operating frequency: 150kHz
  • output ripple: <=5-mV
  • when 65°C is exceeded, the need for additional cooling
  • the inverter has heat sinks
  • mounting holes in the board

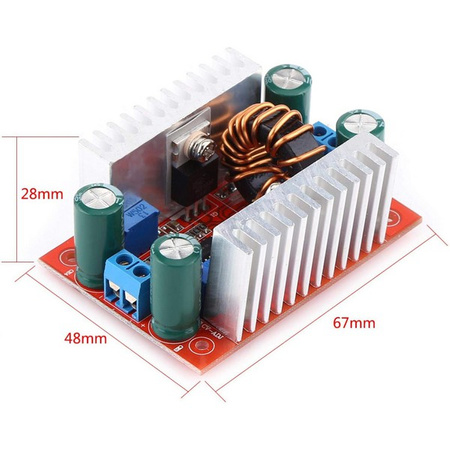

  • dimensions: 65 x 48 x 24 mm

NOTES

  • Incorrect connection of power supply polarity causes damage to inverter
  • This device is designed for experienced do-it-yourselfers, basic knowledge of electronics and soldering skills are required. The company is not responsible for damages resulting from lack of soldering skills or poorly made electrical installations.
  • Check the output voltage and adjust with the potentiometer to the correct one and only then connect the receiving device.
Write your opinion
Your score:
5/5
Add a picture:
Przetwornica rodzajStep-Up
Inverter typeDC-DC
Brand
ABC-RC
Entity responsible for this product in the EU
JH Global Trading (HK) Co., LimitedMore
ProducerJH Global Trading (HK) Co., LimitedAddress: Room G, Floor 10, Block A, Duhui Electronic Building, Huaqiang Road 10Postal Code: CN 518031City: ShenzhenCountry: ChinyPhone number: 86 075582557429E-mail: info@jh-electronica.com
Responsible entityABC-RC Firma LedaAddress: Judy Tadeusza 9Postal Code: 34-122City: NidekCountry: PolskaPhone number: 333-003-080E-mail: pomoc@abc-rc.pl
Symbol
20185
Producer code
5904384770755
Series
Inverter Modules
Przetwornica rodzaj
Step-Up
Inverter type
DC-DC
Manufacturer
inny
Other
unbranded
Model
6723
other
400W
Status
New
Manufacturer code
6723
20185
Rodzaj
inverter
inny
Packaging condition
original
Do you need help? Do you have any questions?Ask a question and we'll respond promptly, publishing the most interesting questions and answers for others.
Ask a question
Ask for this product
If this description is not sufficient, please send us a question to this product. We will reply as soon as possible. Data is processed in accordance with the privacy policy. By submitting data, you accept privacy policy provisions.

Guide

What is a dc-dc inverter used for?

What is a dc-dc inverter used for?

Konwerter napięcia zapewnia stabilne dostarczanie energii elektrycznej. To ważne dla wydajności i trwałości sprzętu elektronicznego. Przetwornice DC/DC są cenione za swoją efektywność energetyczną.

DC/DC converter is an important device in the world of electronics. Its main task is to change the DC voltage from one level to another. It is crucial for efficiently powering devices, from smartphones to advanced industrial systems.

DC/DC converter is an important device in the world of electronics. Its main task is to change the DC voltage from one level to another. It is crucial for efficiently powering devices, from smartphones to advanced industrial systems.
