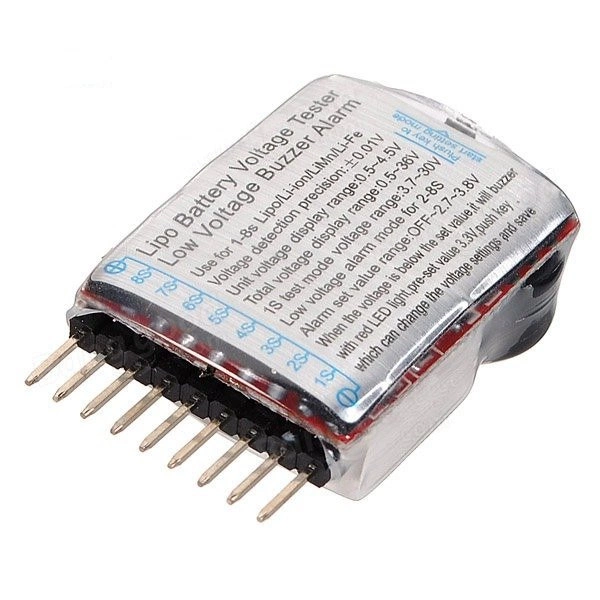

LiPo Buzzer Alarm - lipo alarm 8s - cell voltage meter with alarm

Indicator - Meter with low voltage alarm, buzzer - Lipo pack tester

Very loud Buzzer-voltage meter from 1S - to 8S with alarm for exceeding minimum and maximum voltage on the cell.

Great lipo alarm battery tester successfully installed in most models.

Digital lipo voltage meter is a device worth investing in.

Thanks to the buzzer, we will be warned of a low battery, giving us time to land peacefully.

The meter displays information such as:

• ALL - voltage of the whole package
• -1-, -2-... - voltage on an individual cell

Thanks to the built-in button, we can set according to individual needs the alarm threshold from 2.5V to 3.8V.

When the voltage drops to the set value, an alarm sounds, which informs the remote control that the energy level is low. The alarm can also be turned off.

When the button is pressed, the currently set range is displayed and by pressing it again, change to a different voltage value (displayed) or turn off when the display reads "OFF".

The meter does not need additional power supply, after plugging in the package it immediately starts working and displays all the information.

Technical data

• Push-button programmable - setting the alarm voltage level
• voltage measurement on each cell with audible indication
• Number of cells: 2S, 3S, 4S, 5S, 6S, 7S, 8S (3.7V-29.6V)
• Measurement accuracy: 0.01V
• Measurement range for each cell: 0.5-4.49V
• Total measurement range (for all cells): 0,5-36V
• Audible signal when voltage drops on one of the cells below electronically programmable: from 2.7V to 3.8V
• Ability to set the threshold of the alarm action with a button
• Additional bright indicator light when alarm is activated
• Connector type: balancer plug
• weight 9g

Video presentation

Included

• Lipo alarm, buzzer, tester - Lipo pack meter with 1-8S alarm - 1 pc
