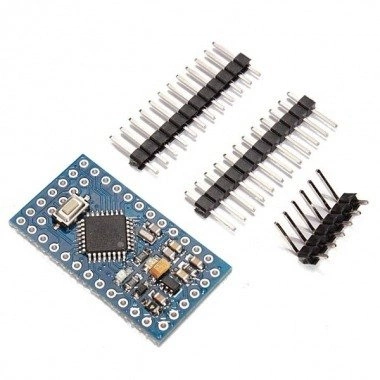

Universal module with ATmega328P microcontroller. Can be used in many microprocessor projects. Circuit compatible with arduino PRO MINI 5V 16MHz project.
Mini 328 Pro - 5V/16MHz - ATmega328P - Bascom AVR - Arduino compatible
Mini 328 Pro - Universal module with ATmega328P microcontroller with application in many microprocessor projects.
Circuit compatible with arduino PRO MINI 5V 16MHz project.
Its small size will be perfect for the finished project. The same microcontroller used as in the Arduino UNO makes it just as functional, making it ideal for small projects.
The microcontroller has a bootloader preloaded, so all you need for programming is a UART programmer, such as a universal converter module with USB - UART RS232 output.
The Pro Mini, like the UNO, is based on the popular Uno module
It has an Atmega328P microcontroller.
The board contains an ATmega328 chip, equipped with 14 digital inputs/outputs, 6 of which can be used as PWM outputs (e.g. servo control) and 7 as analog inputs (for voltage measurement), but can also act as additional digital pins.
Works with voltages of 5 V.
It is clocked with a 16 MHz clock signal.
Switch for manual reset
This version has no soldered connectors - so the board can keep its small size.
Technical specifications of Mini 328 Pro
Supply voltage: 5V
Microcontroller: ATmega328P - 16 MHz
Ports - I/O pins: 14
Number of analog inputs: 7
Number of PWM outputs: 6
Serial interfaces: UART, SPI, I2C
External and internal interrupts
Protection against the flow of too much current
Module made on 0.8 mm thick laminate
Weight less than 2 g.
pin spacing 2.54mm (can be mounted in contact boards)
Dimensions: 33 x 18 mm
32kB flash memory
1kB EEPROM
1kB SRAM
2 8bit timers/counters
1 timer/counter 16bit
Arduino Pro Mini schematic
Included
Pro Mini 328 - 5V/16MHz - ATmega328P with bootloader - Bascom AVR - 1 pc
