Relay module 1 channel - 5V - 10A/250V - LED control
Relay module 1 channel - 5V - 10A/250V - LED control
Relay module 1 channel - 5V - 10A/250V - LED control
Relay module 1 channel - 5V - 10A/250V - LED control
Relay module 1 channel - 5V - 10A/250V - LED control
Relay module 1 channel - 5V - 10A/250V - LED control

Relay module 1 channel - 5V - 10A/250V - LED control

Product code: 7561
+ Add to compareAdd to shopping list
  • Universal version of the module with 5V relay, signaling LEDs for 10A/250VAC. The circuit is capable of controlling the actuators using the ports of the microcontroller or any runner kit.
Size
uniwersalny
$0.81
incl. VAT / pcs.
Lowest price in 30 days before discount: / pcs.
Regular price: / pcs.
Order more, pay less!
14 days for easy returns
This product is not available in a stationary store
Safe shopping
Deferred Payments. Buy now, pay later, if you don't return it
Buy now, pay later - 4 steps
When choosing a payment method, select PayPo.PayPo - buy now, pay later
PayPo will pay your bill in the store.
On the PayPo website, verify your information and enter your social security number.
After receiving your purchase, you decide what suits you and what doesn't. You can return part or all of your order - then the amount payable to PayPo will also be reduced.
Within 30 days of purchase, you pay PayPo for your purchases at no additional cost. If you wish, you spread your payment over installments.

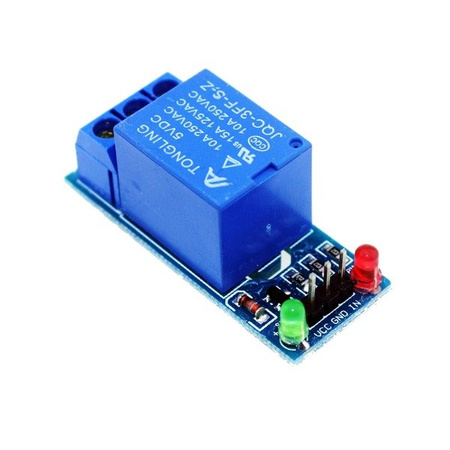

Relay module 1 channel - 5V - 10A/250V - LED control

Moduł przekaźnika 1-kanał - 5V - 10A/250V - optoizolacja oraz kontrola LED

Universal version of the modul with 5V relay, signaling LEDs for 10A/250VAC. The circuit is capable of controlling the actuators using the ports of the microcontroller or any runner kit.

The module is supplied with 5V to the corresponding VCC and GND pins.

Relay activation is indicated by the relay channel operation status LED.

The module is switched on by applying the LOW state, i.e. ground to the signal inputs In1.

Product features

  • SRD-05 relay module with coil powered by 5V
  • The module allows the operation of actuators drawing up to 10A using the ports of a microcontroller or any Arduino runner kit
  • Application for contact boards, arduino, runtime modules, etc.
  • In order to work, it is necessary to connect the power supply of the relay and the control signal in the form of cephalic.
  • lOW state switching
  • Indicator lights
  • Application as: Switch for electrical devices - such as motors, lighting controller, actuator controller

In addition, we used the product for construction of a simple battery discharger project.

Technical data

  • VCC supply voltage: 5 V
  • Relay SRD-05VDC-SL-C (documentation)
  • Coil voltage: 5 V
  • Maximum contact voltage: 250 VAC
  • Maximum current: 10 A
  • Plate dimensions 44x12x22 mm

Note

Connection:

  • The module has three input leads
    • DC+ 5V power supply
    • DC- power ground
    • IN. - input

Included

  • Relay module 1-channel - 5V - 10A/250V - 1pc.
